Fig. 4

ID

ZDB-IMAGE-171201-30

Genes

neurod1

Publication

Khatri et al., 2016 - Down-regulation of coasy, the gene associated with NBIA-VI, reduces Bmp signaling, perturbs dorso-ventral patterning and alters neuronal development in zebrafish

All Figures

Figures for Khatri et al., 2016


Figure Caption

Fig. 4

Analysis of neurod1 neural marker in coasy-morphants.

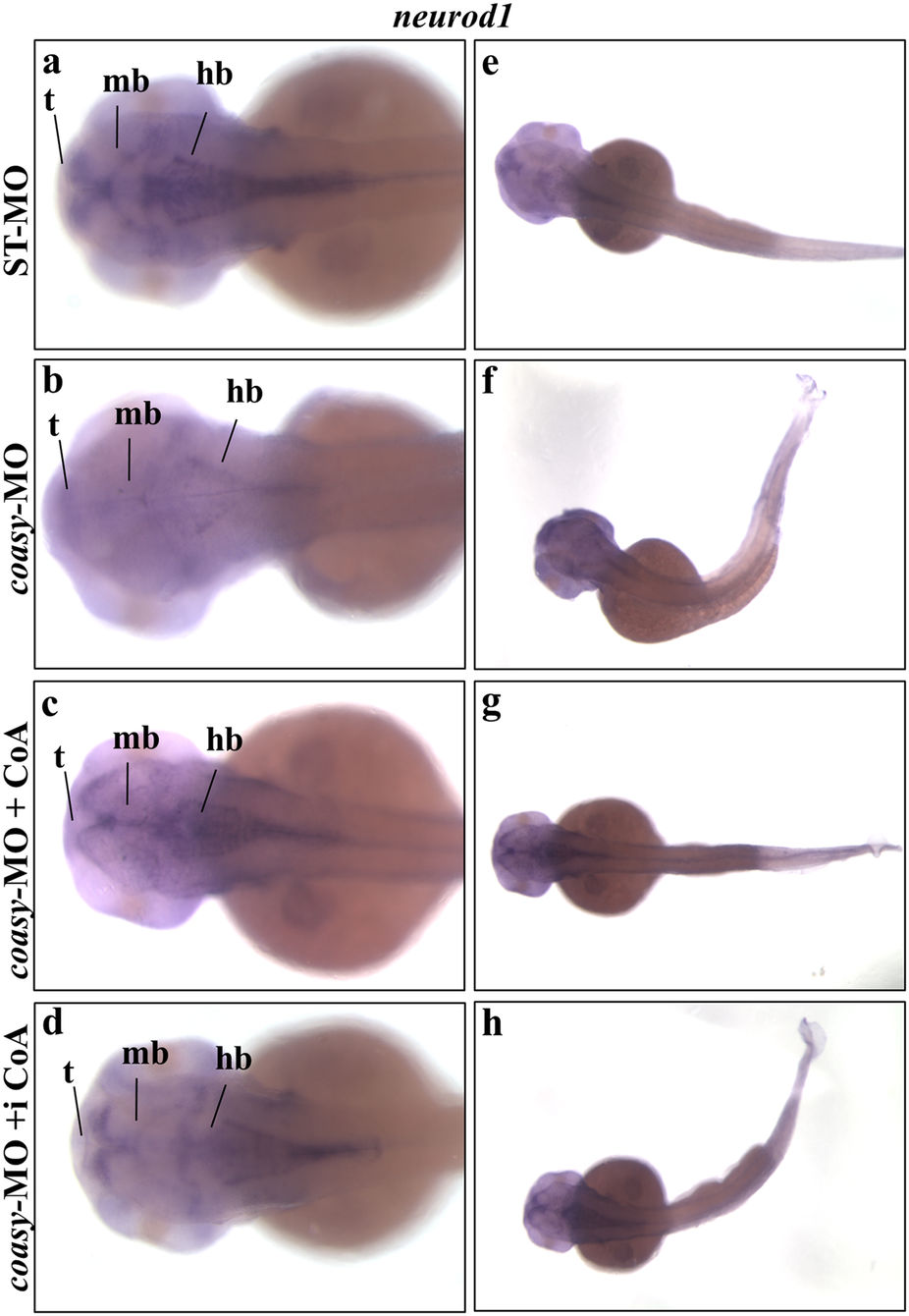

Representative images of WISH analyses of neurod1 expression in coasy morphants at 48 hpf. Dorsal views of ST-MO- (a,e) and coasy-MO-injected embryos (b–h), eventually exposed to CoA in fish water (c,g) or injected with CoA in the brain ventricle at 24 hpf (d,h). For each panel, results of one representative experiment with at least 40 embryos out of two independent replicates are shown. Abbreviations: d, diencephalon; tg, tegmentum; t, telencephalon; hb, hindbrain; hbn, hindbrain neurons; llg, lateral line ganglia; mb, midbrain; snc, spinal cord neurons.

Figure Data

Expression / Labeling details

Phenotype details
