Fig. 7

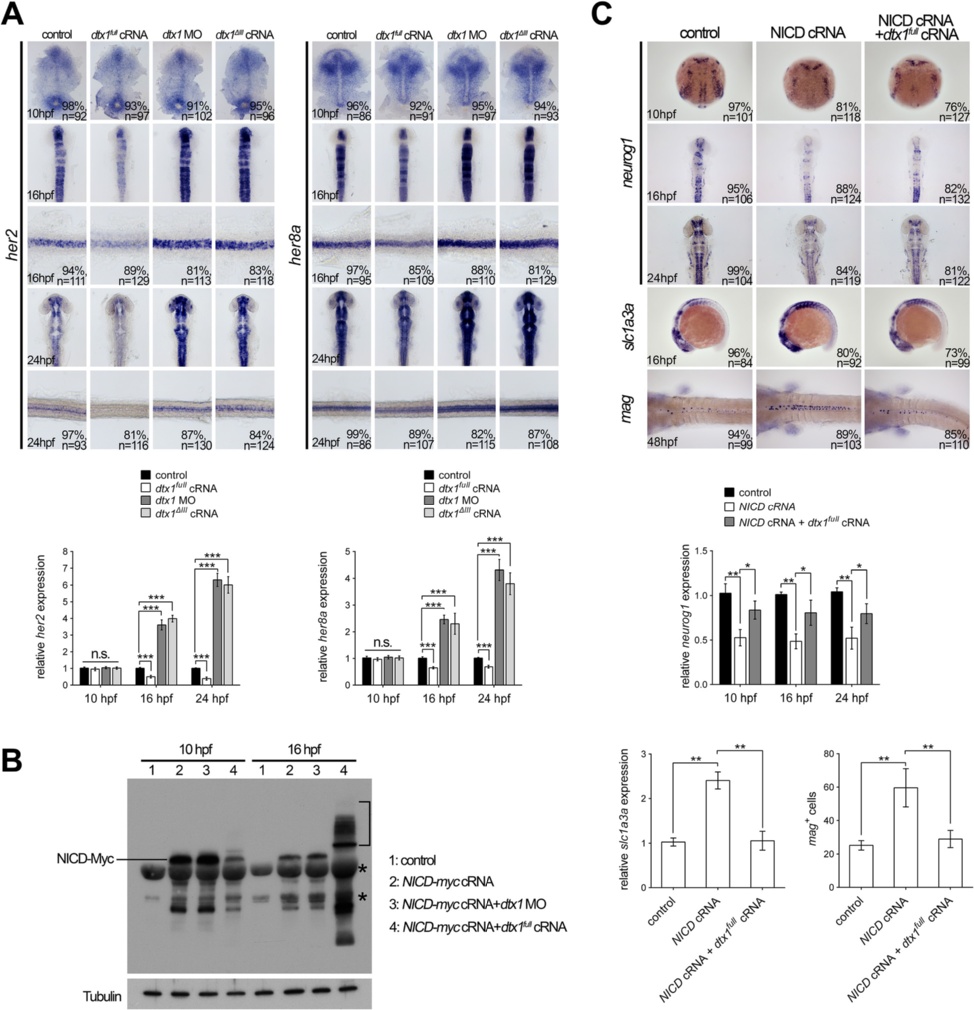

Dtx1 regulates Notch signaling in a temporal manner. a In situ hybridization and qPCR results show that expression of her2 and her8a was not affected by the alteration of dtx1 expression at 10 hpf. In contrast, the expression of her2 and her8a was downregulated by dtx1 full cRNA and upregulated by dtx1 ΔIII or dtx1 morpholino after 16 hpf. The embryo stages are shown in the bottom left corner of each panel. b Injection of NICD inhibits neurog1 expression and induces slc1a3a and mag expression. This effect of NICD could be abrogated by co-injection with dtx1 full cRNA at all stage examined. The result of in situ hybridization was confirmed by qPCR quantification showing in a and b c Western blot analysis with anti-Myc antibody revealed that injection of dtx1 full cRNA caused ubiquitination of NICD-myc, indicated by multiple bands in samples at 16 hpf (bracket). Asterisks indicating non-specific bands
