Fig. S6

ID: ZDB-IMAGE-170908-20
Publication: Breau et al., 2017 - Extrinsic mechanical forces mediate retrograde axon extension in a developing neuronal circuit
All Figures: Figures for Breau et al., 2017


Figure Caption

Fig. S6

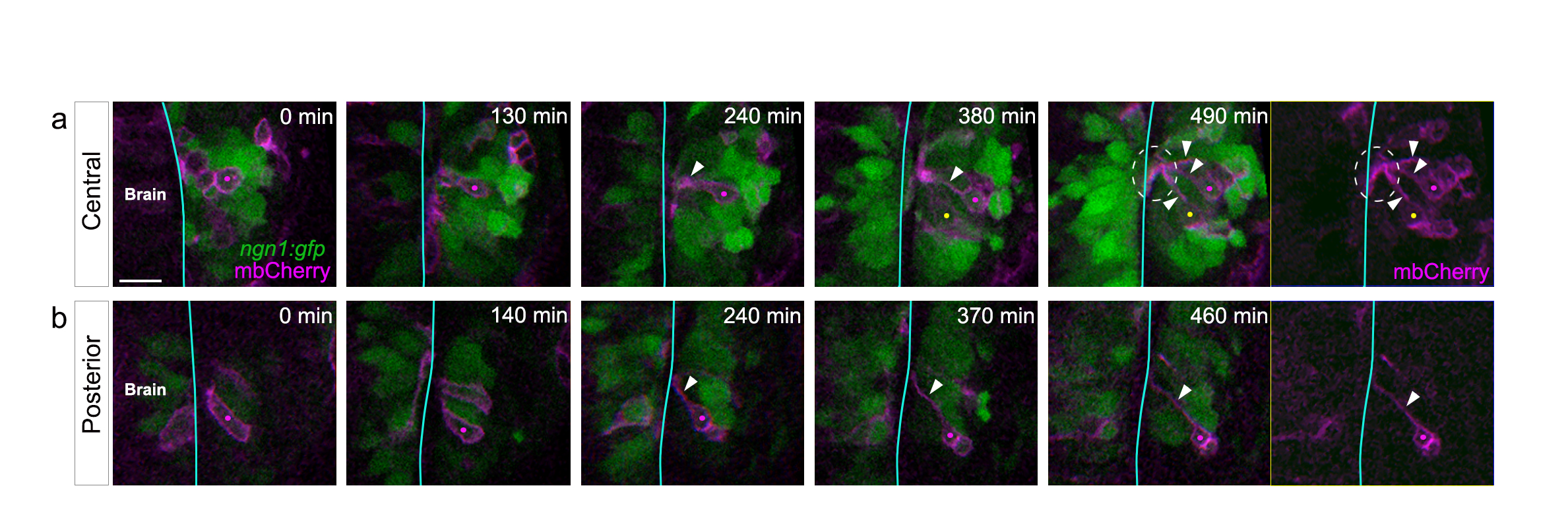

Morphologies of placodal cells expressing low levels of GFP. (a,b) Two time lapse sequences showing instances of central (a) and posterior (b) low ngn1:gfp+ cells undergoing lateral movements. Cells of interest are indicated with pink and yellow dots. The brain surface is indicated by a blue line. While moving laterally, the cells (labelled with mosaic mbCherry) extend a long cytoplasmic process contacting the brain surface (white arrowheads), as shown for high GFP-expressing cells in Figure 2. On the up right panel, note that all the protrusions of mbCherry-labelled placode cells meet to form a bundle on the brain surface {white dotted line). Scale bar: 25 µm .
