Fig. 3

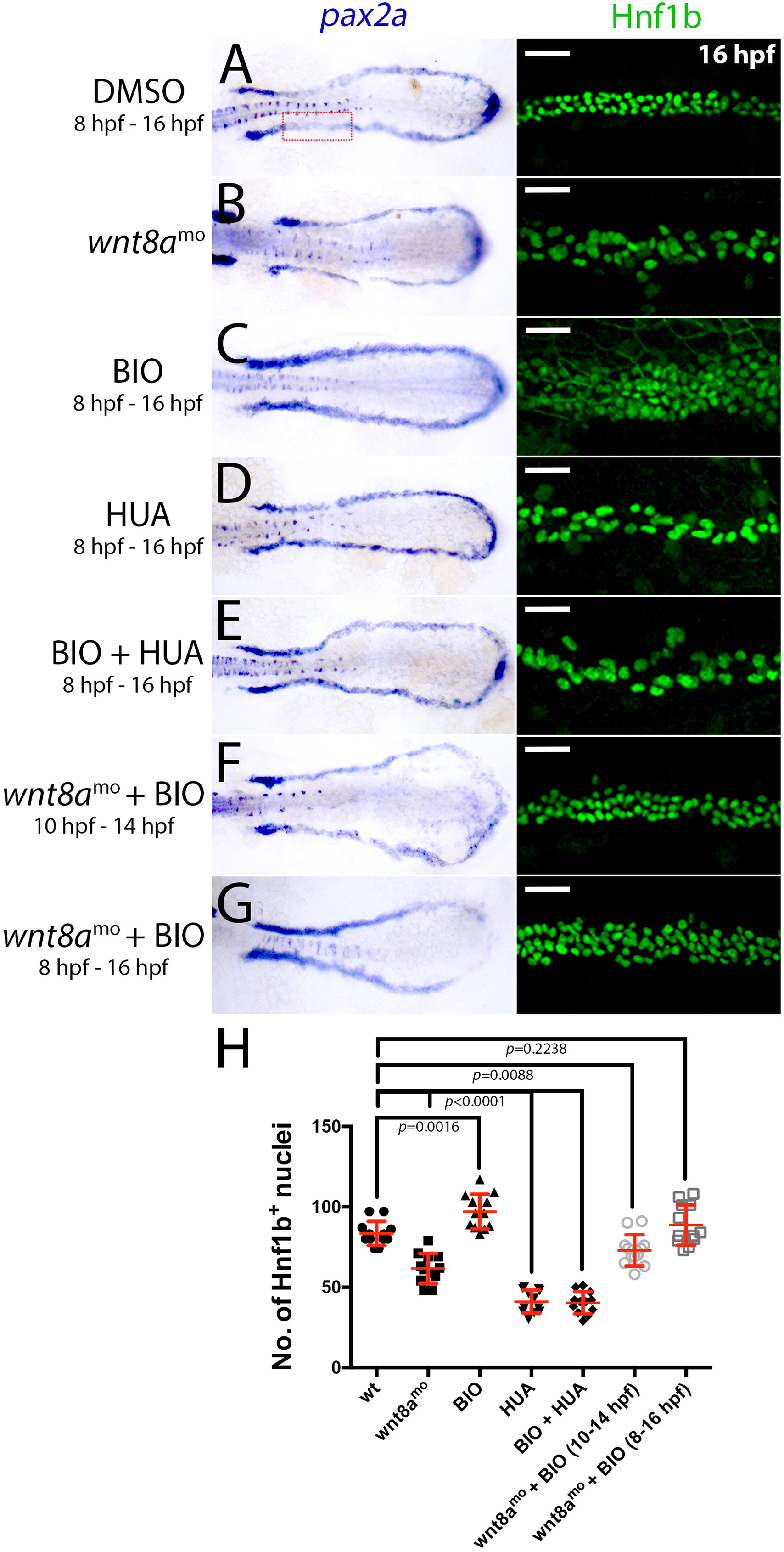

Effects of wnt8a knockdown and BIO on renal progenitor cell number. A-G) Left panels show flat mounted dorsal views of the trunks of 16 hpf embryos stained for pax2a transcripts and treated as indicated. Right panels show close-up views Hnf1b+ nuclei in the proximal pronephros (location indicated by the red dotted box in the embryo in A). Scale bar represents 50 µm. H) Scatter-graph showing empirical counts of Hnf1b+ nuclei after the various treatments shown.
