ZFIN Image: Tanaka et al., 2017, Fig. 8


Figure Caption

Fig. 8

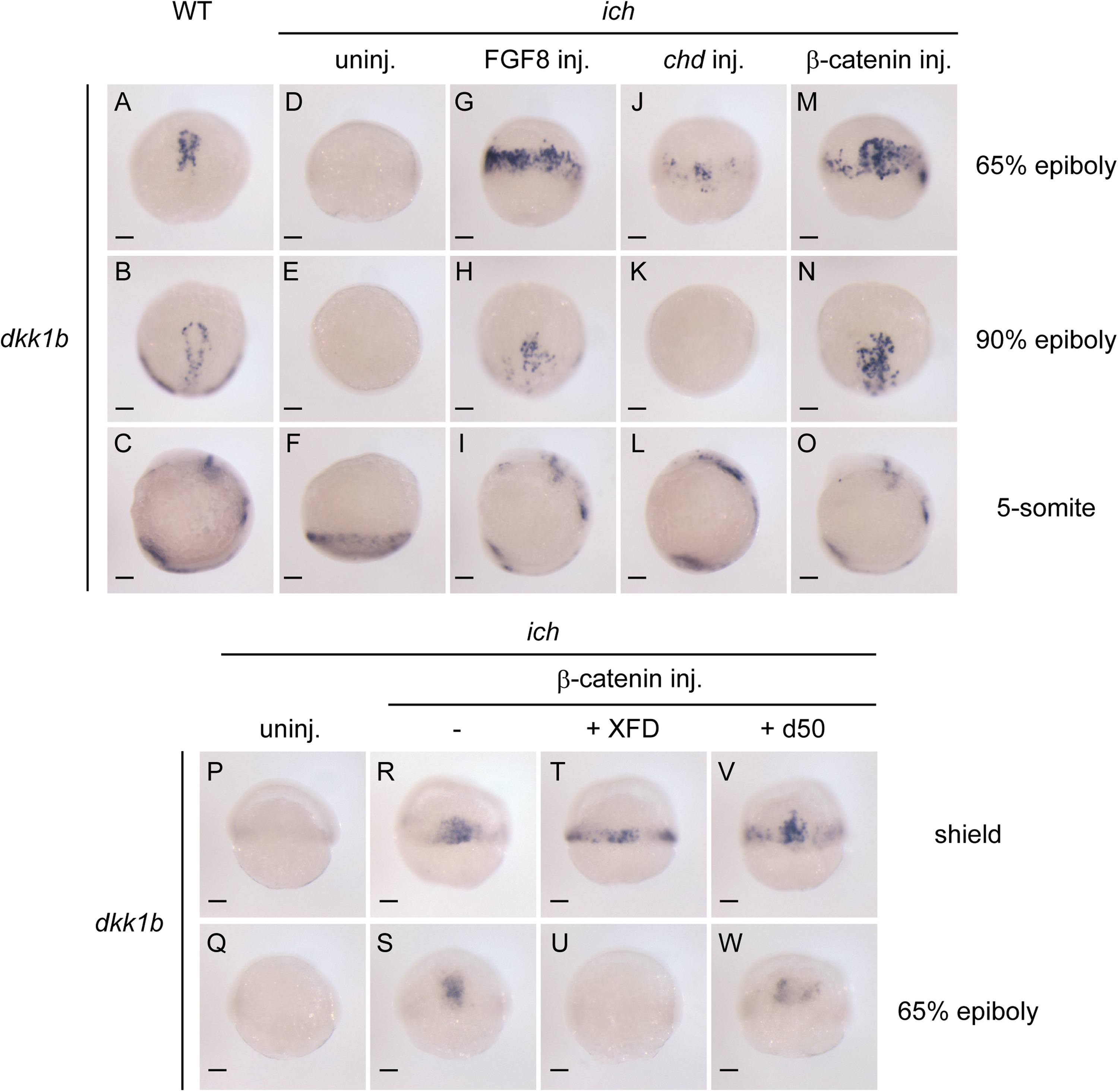

Activation of the FGF signaling pathway maintains dkk1b expression levels from mid-gastrulation to early somitogenesis, whereas chd fails to maintain dkk1b expression levels after mid-gastrula stage. Expression of dkk1b in (A–C) wild-type embryos, (D–F, P and Q) uninjected ichabod embryos, (G–I) FGF8 mRNA-injected ichabod embryos, (J–L) chd mRNA-injected ichabod embryos, (M–O, R and S) β-catenin mRNA-injected ichabod embryos, (T and U) β-catenin and XFD mRNA-injected ichabod embryos, and (V and W) β-catenin and d50 mRNA-injected ichabod embryos. Embryos are shown at the shield stage (P, R, T and V, dorsal views), 65% epiboly (A, D, G, J, M, Q, S, U and W, dorsal views), 90% epiboly (B, E, H, K and N, animal views), and 5-somite stage (C, F, I, L and O, lateral views). Scale bars represent 100 µm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 424(2), Tanaka, S., Hosokawa, H., Weinberg, E.S., Maegawa, S., Chordin and dickkopf-1b are essential for the formation of head structures through activation of the FGF signaling pathway in zebrafish, 189-197, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
