ZFIN Image: Kuri et al., 2017, Fig. S1


Figure Caption

Fig. S1

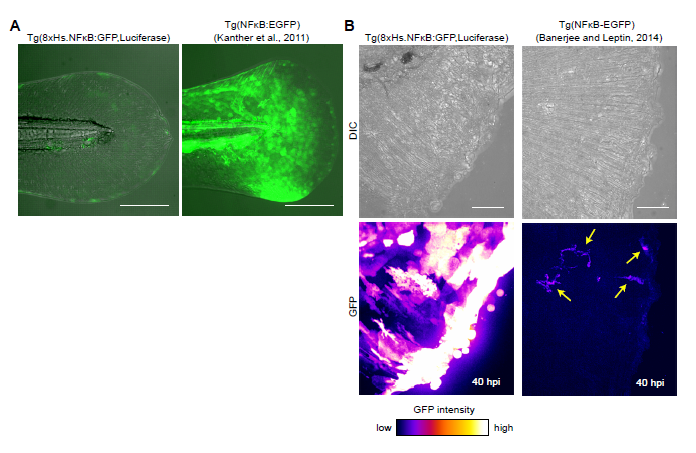

Comparison between Tg(8xHs.NF?B:GFP,Luciferase) and two other previously developed zebrafish NF-?B-responsive transgenic lines. (A) Tg(NF?B:EGFP) embryos display stronger GFP signal in the skin compared to the Tg(8xHs.NF?B:GFP,Luciferase) embryos at 3dpf. Note the Tg(NF?B:EGFP) line was originally described in Kanther et al., 2011. (B) Comparison between Tg(8xHs.NF?B:GFP,Luciferase) and Tg(NF?B-EGFP) after tailfin cut. The GFP was examined 40 hours post-injury (hpi). Note equal laser intensity was used to illustrate that Tg(NF?B-EGFP) embryos display weaker GFP signal in the injured site compared to the Tg(8xHs.NF?B:GFP,Luciferase) embryos. Yellow arrows indicate cells with GFP expression. Note Tg(NF?B-EGFP) line was originally described in Banerjee and Leptin, 2014. Anterior is to the left. Scale bars: 200?m (A) and 30?m (B).
