Fig. S4

ID: ZDB-IMAGE-170222-96
Publication: Linsley et al., 2017 - Congenital myopathy results from misregulation of a muscle Ca2+ channel by mutant Stac3
All Figures: Figures for Linsley et al., 2017


Figure Caption

Fig. S4

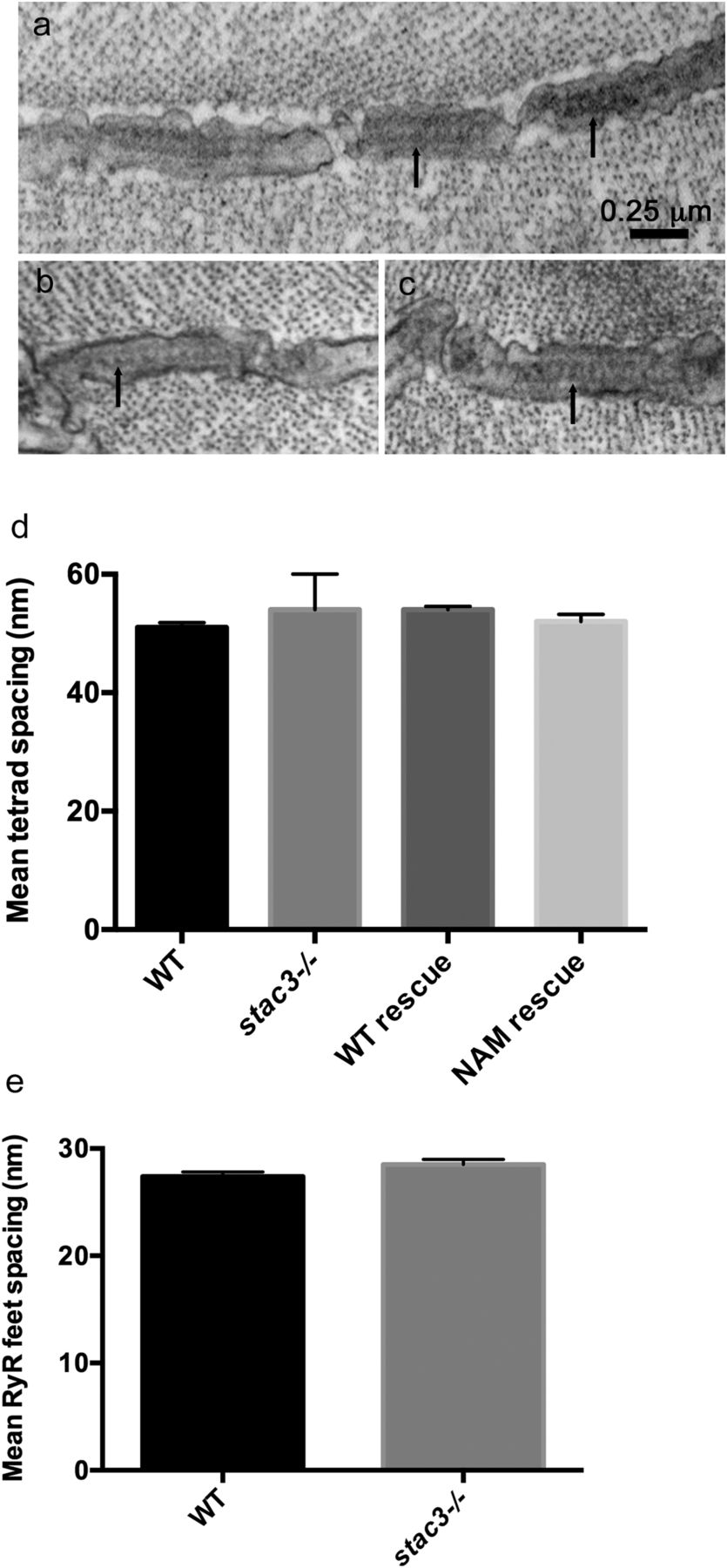

DHPR particles and tetrads are reduced in stac3 mutants but Ryr feet are unaffected. (A) Transverse EM section showing the RyR feet (arrows) at triads in a WT muscle fiber (96 hpf). (B and C) Examples of transverse EM sections showing that the distribution of RyR feet (arrows) in stac3^−/− muscles is comparable to that in WT muscles. (D) Histogram showing that the spacing of tetrads was comparable in fibers from WT (n = 39) and stac3^−/− (n = 25). stac3^−/− expressing Stac3^WT (WT rescue, n = 45) and stac3^−/− expressing Stac3^NAM (NAM rescue, n = 44) larvae (ANOVA, P = 0.07). (E) Histogram showing that the spacing of RyR feet was comparable in WT (n = 27) and stac3^−/− (n = 39) fibers (t test, P = 0.11). SEMs are indicated.
