ZFIN Image: Keßler et al., 2015, Fig. 2


Figure Caption

Fig. 2

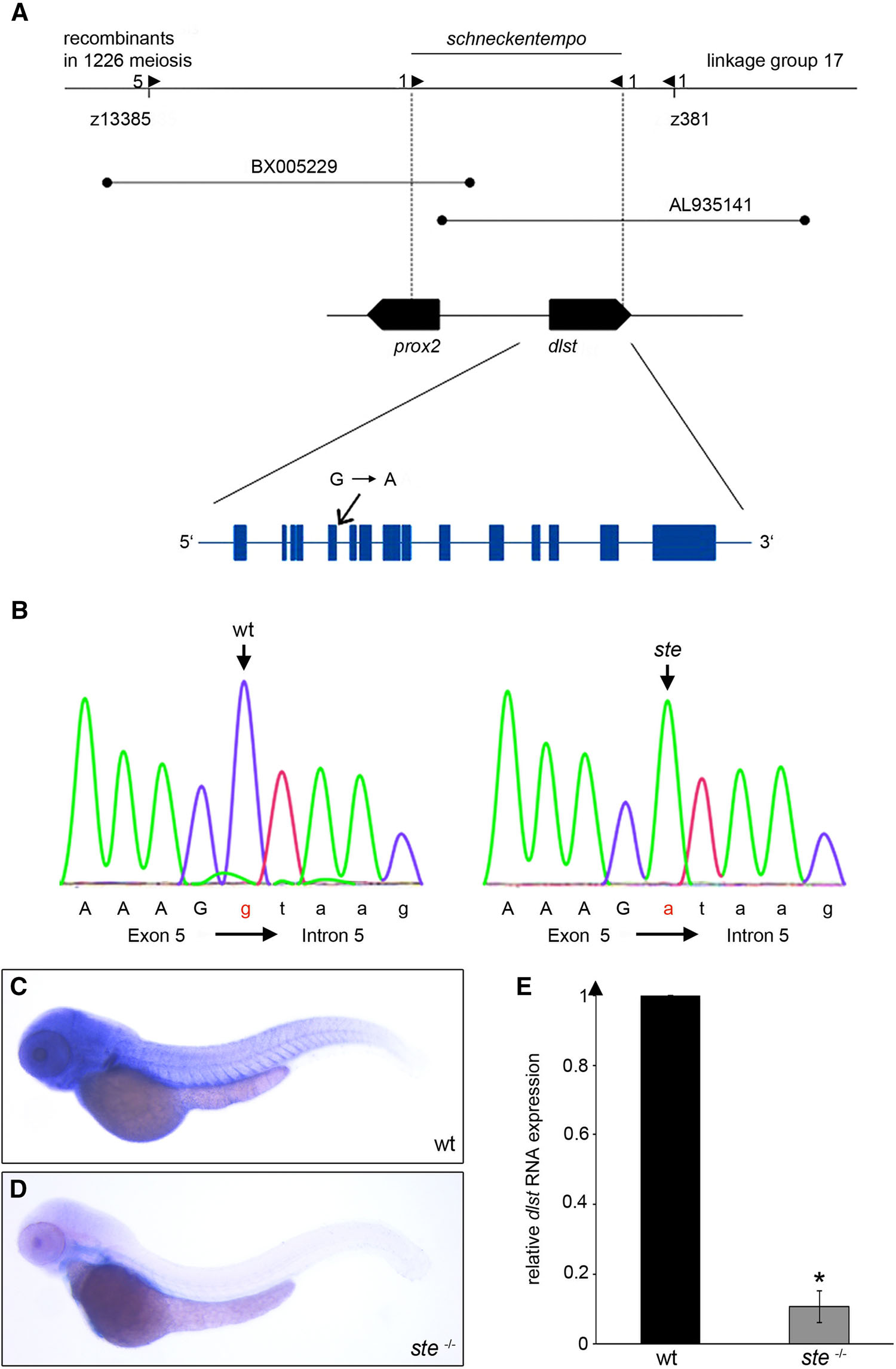

ste encodes for dihydrolipoyl succinyltransferase (dlst). a Integrated genetic and physical map of the ste locus. The ste mutation interval is flanked by the microsatellite markers z13385 and z381 and encodes two open reading frames, zebrafish dlst and prox2. b Within the coding sequence of zdlst a point mutation (G→A) was identified at the splice donor site of intron 5 leading to aberrant pre-mRNA splicing and the premature termination of DLST translation. An arrow marks the mutated base. c, d Spatial expression of dlst by whole-mount antisense RNA in situ hybridization of wt and ste^−/− embryos at 72 hpf. cdlst is ubiquitously expressed with pronounced levels in the brain, skeletal muscle, fins and heart of wild-type embryos. d Strongly reduced dlst mRNA levels in ste^−/− mutants compared to wild-type littermates. e Quantitative real-time PCR of ste^−/− mutants and wild-type siblings. Nonsense mediated dlst-RNA decay in ste^−/− mutants compared to wild-type siblings at 72 hpf

Figure Data

Expression / Labeling details
