Fig. 5

ID
ZDB-IMAGE-161020-32
Genes
Source
Figures for Anastasaki et al., 2011
Figure Caption

Fig. 5

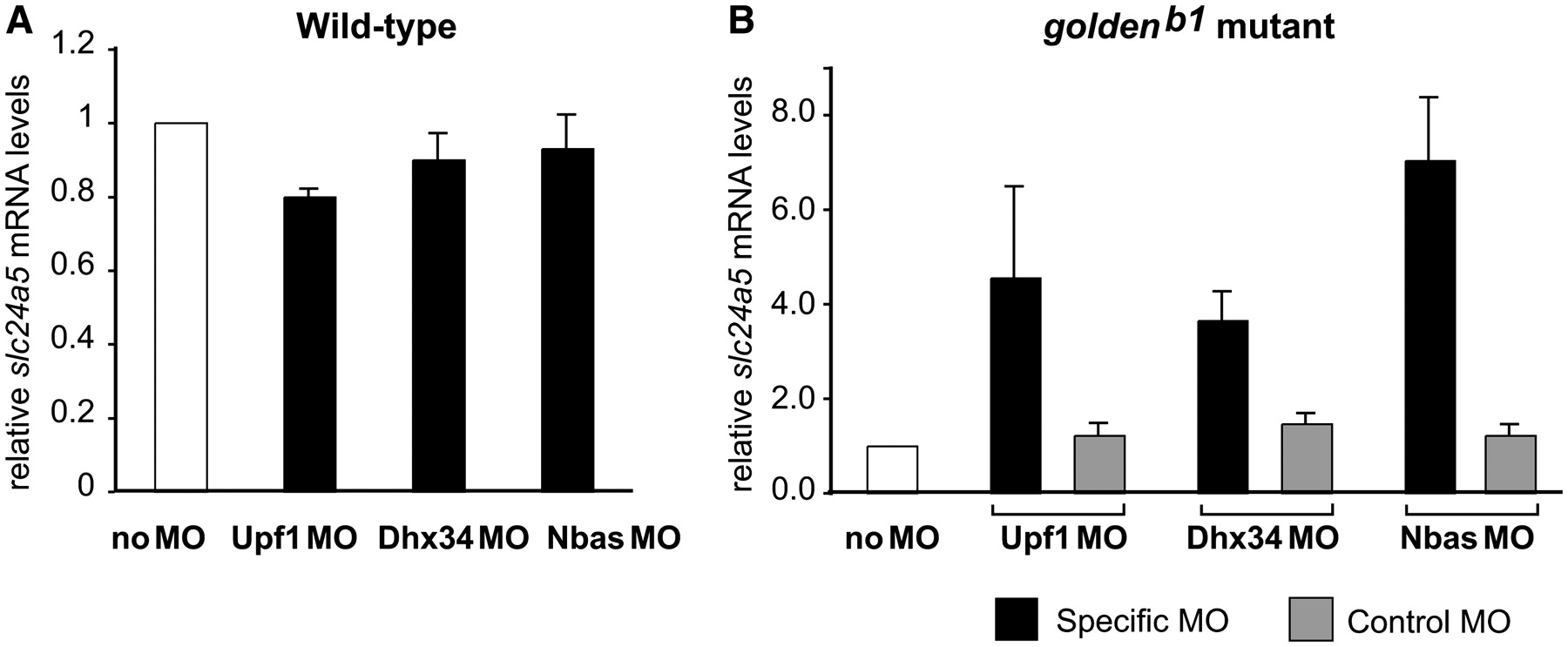

Both Dhx34 and Nbas are required for the in vivo degradation of the nonsense slc25a5 transcript in zebrafish. Expression of slc25a5 mRNA was measured in wild-type (A) and goldenb1 mutant (B) uninjected embryos, or embryos injected with indicated MOs, by real-time RT-PCR. The level of slc25a5 transcript was normalized to dct mRNA. The normalized values were then divided by values for uninjected samples (no MO) and expressed as relative mRNA levels.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nucleic Acids Res.
