Fig. S3
- ID
- ZDB-IMAGE-160818-52
- Publication
- Muthu et al., 2016 - Rx3 and Shh direct anisotropic growth and specification in the zebrafish tuberal/anterior hypothalamus
- All Figures
- Figures for Muthu et al., 2016
|
Figure Caption
Fig. S3

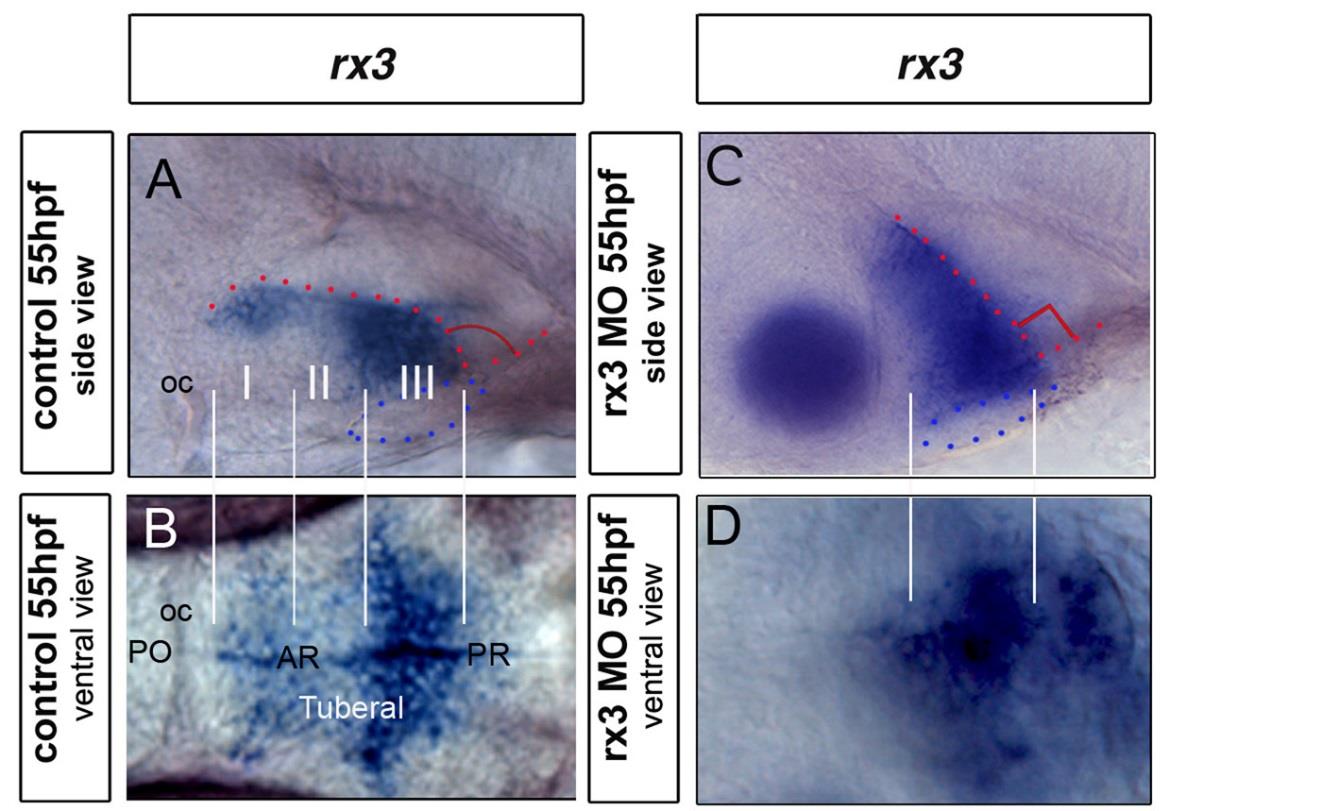

rx3 morphant embryos phenocopy ckh mutants. Side views (A-D, F-I) or ventral views (E,J, inset in A,F) of control-injected or rx3-morpholino-injected embryos at 55hpf analysed by single in situ hybridization or double FISH. Abbreviations: ADH, anterodorsal hypothalamus; OT, optic tectum; PVH, posterior ventral hypothalamus; Tel, telencephalon. Scale bars: 50µm.
