Fig. S1

ID: ZDB-IMAGE-160805-29
Publication: Pagán et al., 2015 - Myeloid Growth Factors Promote Resistance to Mycobacterial Infection by Curtailing Granuloma Necrosis through Macrophage Replenishment
All Figures: Figures for Pagán et al., 2015


Figure Caption

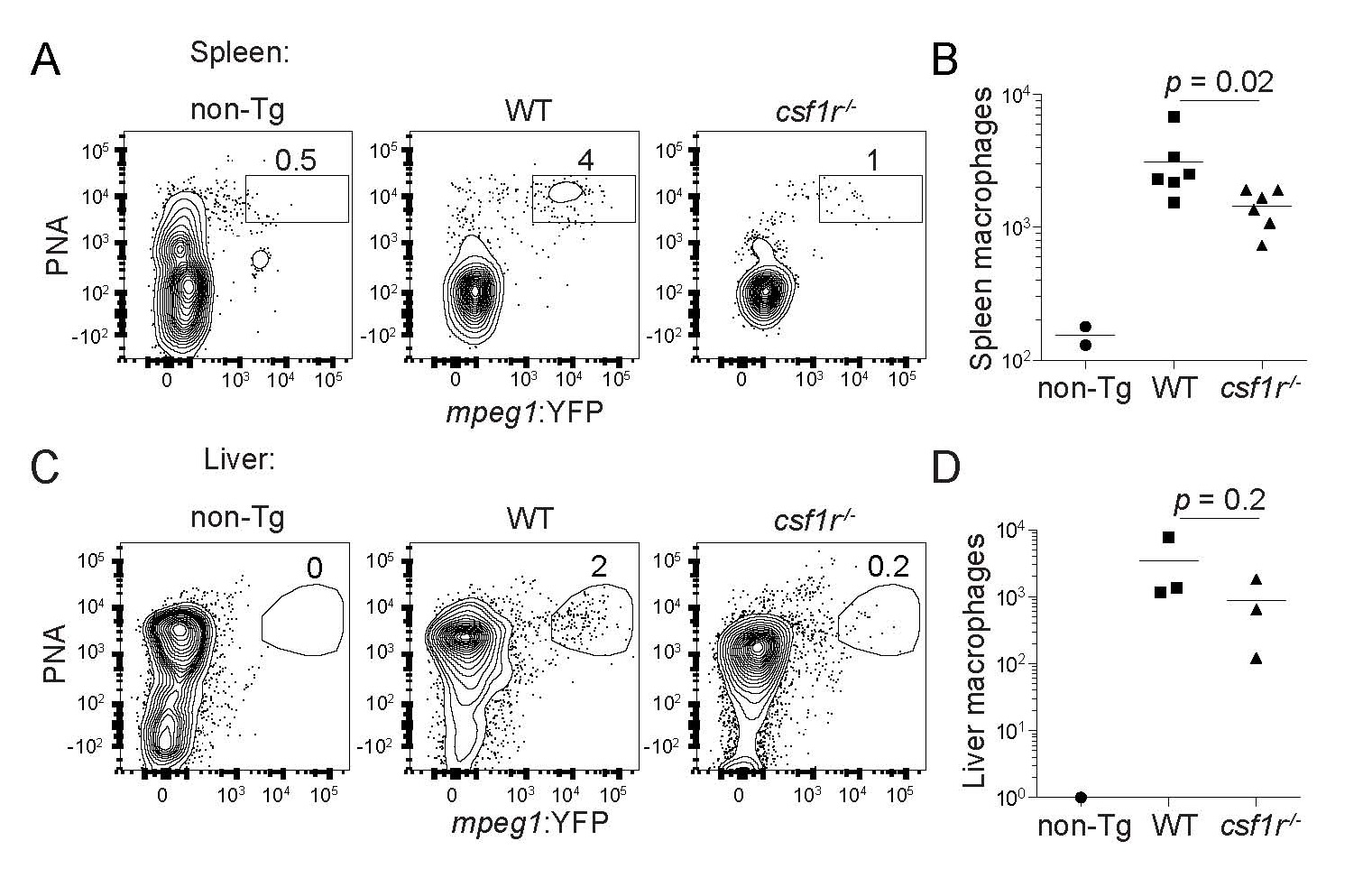

Fig. S1

(Related to Figure 1). Adult csf1r mutant zebrafish have impaired macrophage development. (A) Flow cytometry plots and (B) absolute numbers of viable (DAPI-) splenic macrophages in 3-4 month-old wild-type (WT) and csf1r^-/- mpeg1:YFP fish. mpeg1:YFP- WT (non-transgenic, non-Tg) fish were used as negative controls. Each symbol represents individual larvae. (C) Flow cytometry plots and (D) absolute numbers of viable (DAPI-) liver macrophages in 3-4 month-old wild-type (WT) and csf1r^-/- mpeg1:YFP. Numbers above gated populations indicate percentages within parent population. Data are representative of two independent experiments (A) or were pooled from two experiments (B). Statistical significance determined by two-tailed unpaired Student’s t test.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Host Microbe
