ZFIN Image: Houbrechts et al., 2016, Fig. T4


Figure Caption

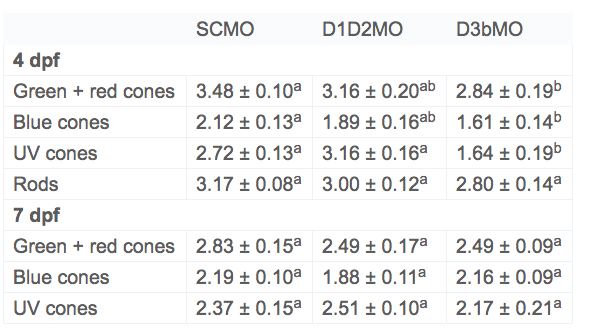

Fig. T4 Relative rod and cone photoreceptor number in D1D2MO and D3bMO zebrafish at 4 and 7 dpf. Data represent relative cone/rod numbers per retinal surface area (expressed as number ×10^-3/pixel²) and are shown as mean ± SEM (n ≥ 5 per group). The following antibodies were used: Zpr1 (green and red cones), anti-blue opsin (blue cones), anti-UV opsin (UV cones) and Zpr3 (rods). Rod data were obtained in a separate experiment and only counted at 4 dpf. For a given opsin and stage groups with no common letter are significantly different (p < 0.05). Data followed Gaussian distribution and were analyzed by one-way ANOVA with Tukey post hoc test.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 424, Houbrechts, A.M., Vergauwen, L., Bagci, E., Van Houcke, J., Heijlen, M., Kulemeka, B., Hyde, D.R., Knapen, D., Darras, V.M., Deiodinase knockdown affects zebrafish eye development at the level of gene expression, morphology and function, 81-93, Copyright (2016) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
