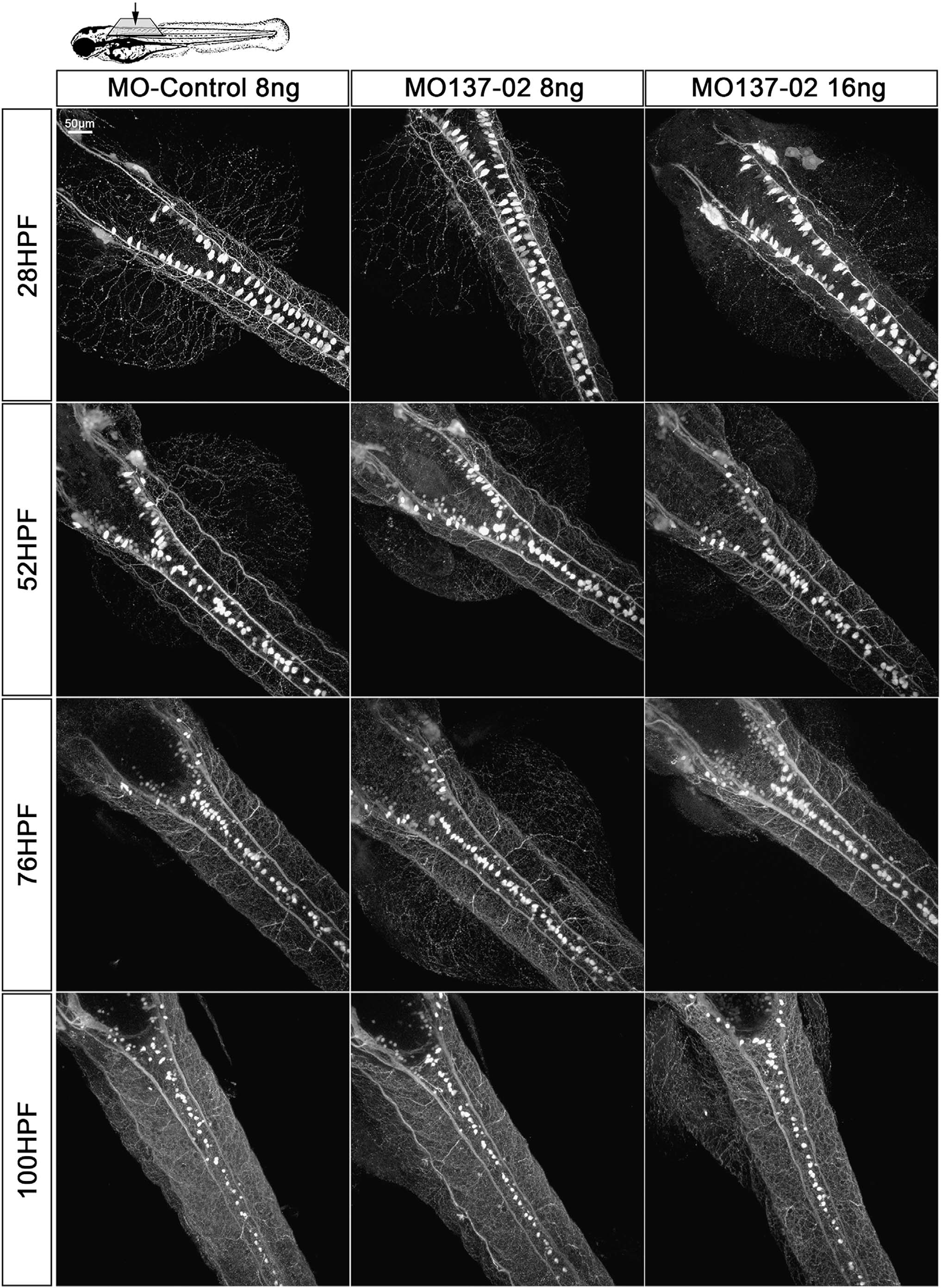

miR-137 knockdown does not impair Rohon–Beard- (RB-), dorsal root ganglia- (DRG-), trigeminal- or Mauthner-(M-)neurons differentiation and seems to not modify their overall network. SEN:GFP transgenic animals were injected with 8–16 ng of MO-Control or MO137-02 to observe RB, M and DRG cells in vivo. No significant difference with regard to the number of cells was observed between the different conditions (Counting available in Supplementary Figure 7). No obvious difference was observed in terms of axonal network, but an in-depth analysis should be performed to conclude. Following anti-GFP immunostaining, 10 animals per conditions were analyzed at different time points using confocal microscopy and image analysis. Brightness of the original image was enhanced. GFP, green fluorescent protein; MO, morpholino.
