ZFIN Image: Hsu et al., 2015, Fig. 8


Figure Caption

Fig. 8

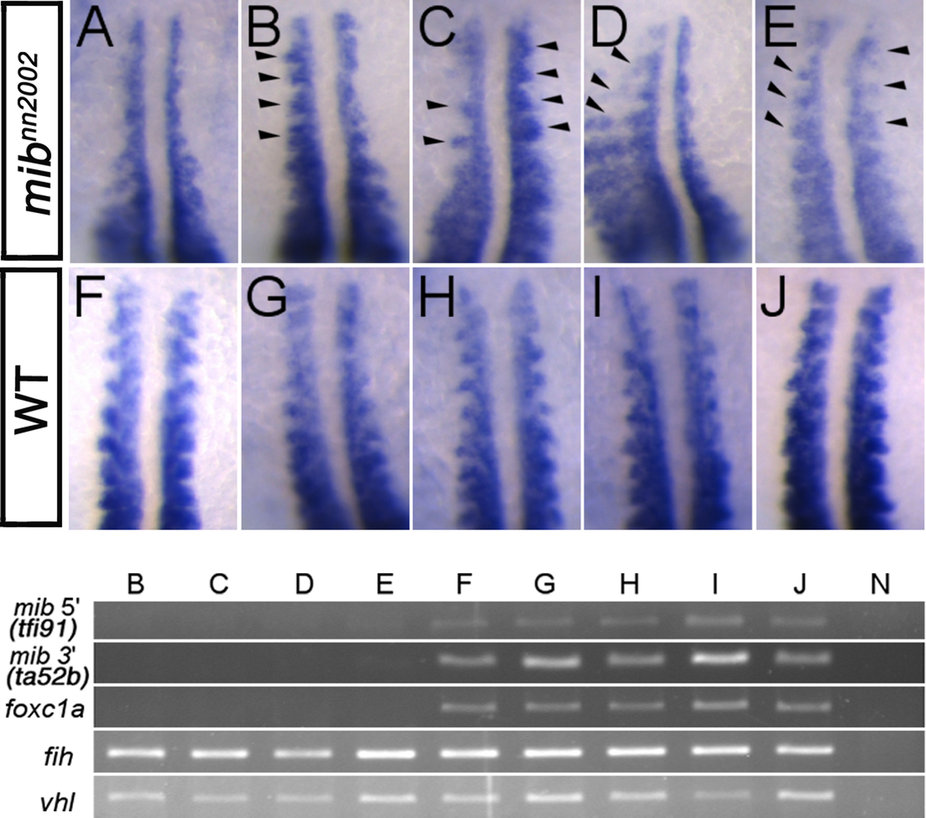

Anterior myoD expression in somites is partially rescued by foxc1a overexpression at 16 hpf.Representative WISH results of (A) non-injected control mibⁿⁿ²⁰⁰² mutants, (B-E) 20 pg foxc1a mRNA injected mibⁿⁿ²⁰⁰² mutants and (F-J) 20 pg foxc1a mRNA injected WT (siblings) are shown. The rescued somites are marked by arrowheads. myoD expression in the anterior somites of E was rescued symmetrically, while those of B-D were rescued asymmetrically in terms of myoD expression pattern, which may be caused by the unequal segregation of injected foxc1a mRNA. Lower panel shows the genotyping results of the embryos shown in B-J. The genomic fragments of mib 5′ (amplified by tfi91 primer set), mib 3′ (amplified by ta52b primer set) and foxc1a were not detected in B-E, while they were amplified in F-J. fih and vhl were amplified in all samples except for the negative control N. None of the genomic fragments was detected in the negative control.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
