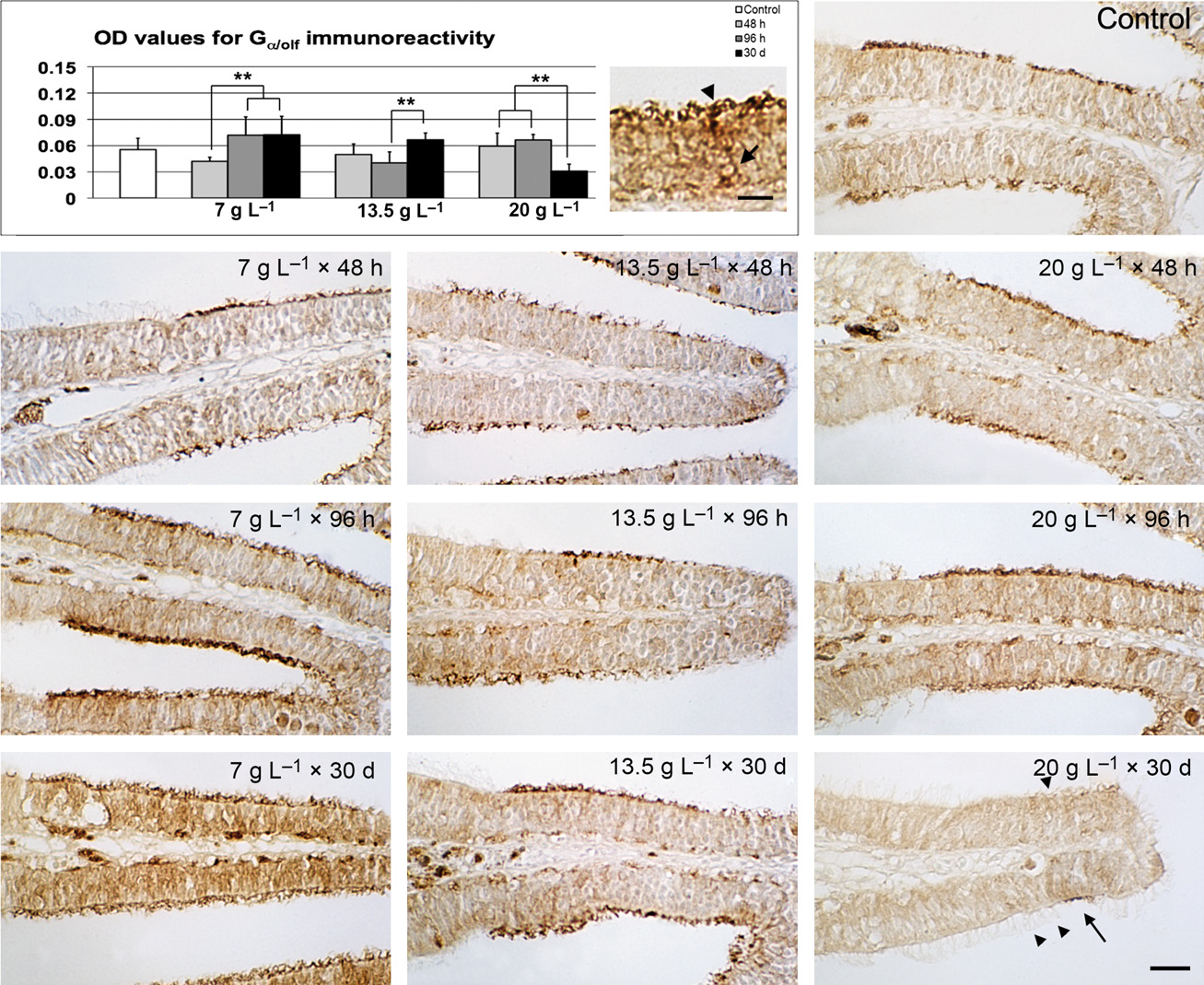

G_{α olf} immunohistochemistry. (A) Densitometric analysis and comparison between controls and treatments. (B) Detail of control epithelium at high magnification; arrow: labelled cell body in the basal layer; arrowhead: G_{α olf}-positive olfactory knob. Scale bar: 10 µm. (C) Representative micrograph of control tissue. (D1–3) Representative micrographs of lamellae exposed to 7 g L^-1 of urea. (E1–3) Representative micrographs of lamellae exposed to 13.5 g L^-1 of urea. (F1–3) Representative micrographs of lamellae exposed to 20 g L^-1 of urea. Arrowheads: ciliated non-sensory cells; arrow: G_{α olf}-positive cells. Significant differences are indicated by asterisks: **P < 0.01. Scale bar: 20 µm. OD, optical density.
