Fig. 7 Comparison of RA, RAL, and ROL teratogenicity.

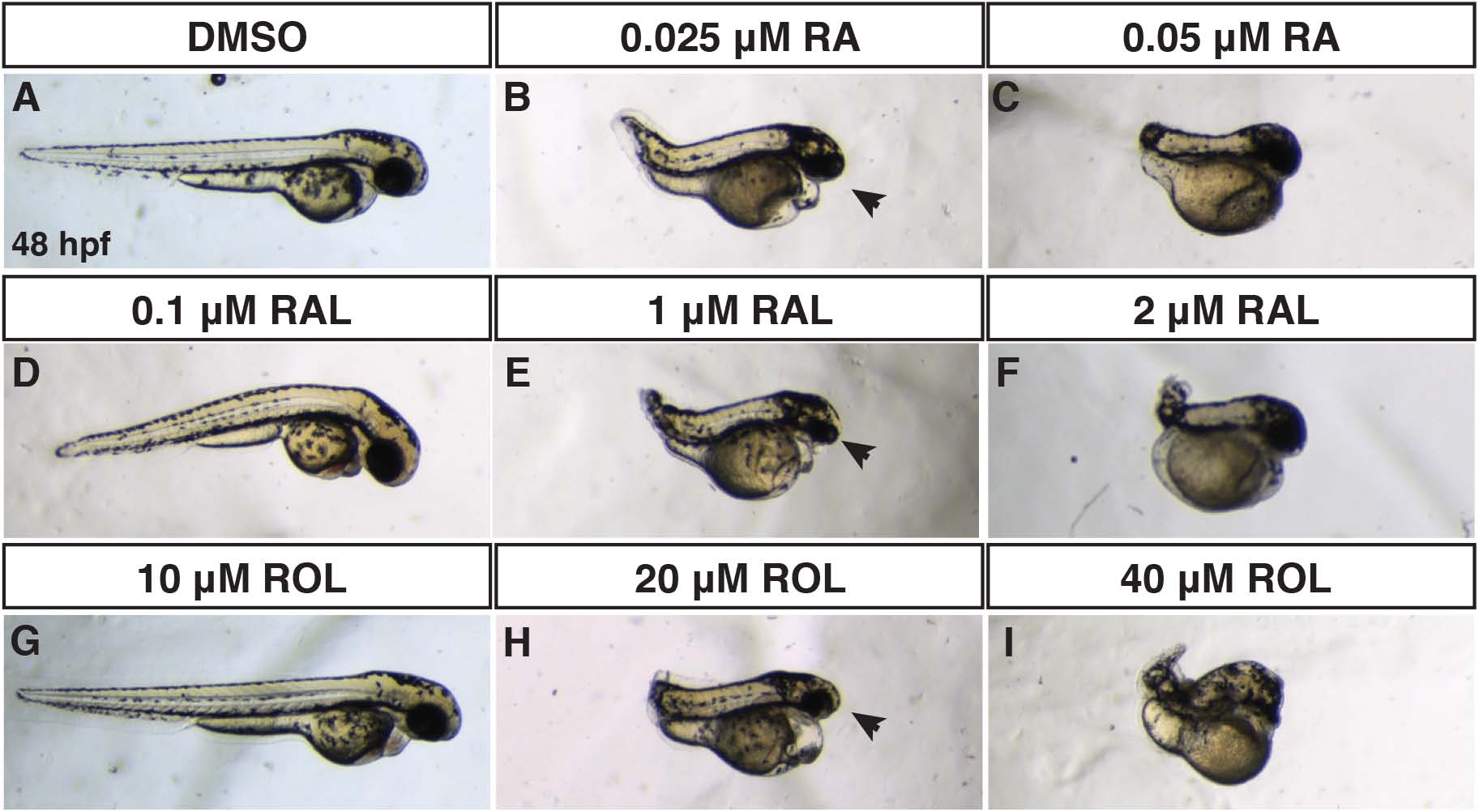

(A-J) Embryos at 48 hpf that were treated from sphere stage through 24 hpf with DMSO, ROL, RAL, and RA. (D,G) Low concentrations of RAL (0.1 µM) and ROL (10 µM) did not cause significant overt defects. (B,E,H) Intermediate concentrations of RAL (1 µM) and ROL (20 µM) and the lower concentration of RA (0.025 µM) produced truncated embryos that still had eyes (arrows). (C,F,I) 0.05 µM RA, 2 µM RAL, and 40 µM ROL produced severely truncated embryos without eyes.
