ZFIN Image: Chen et al., 2015, Fig. 4


Figure Caption

Fig. 4

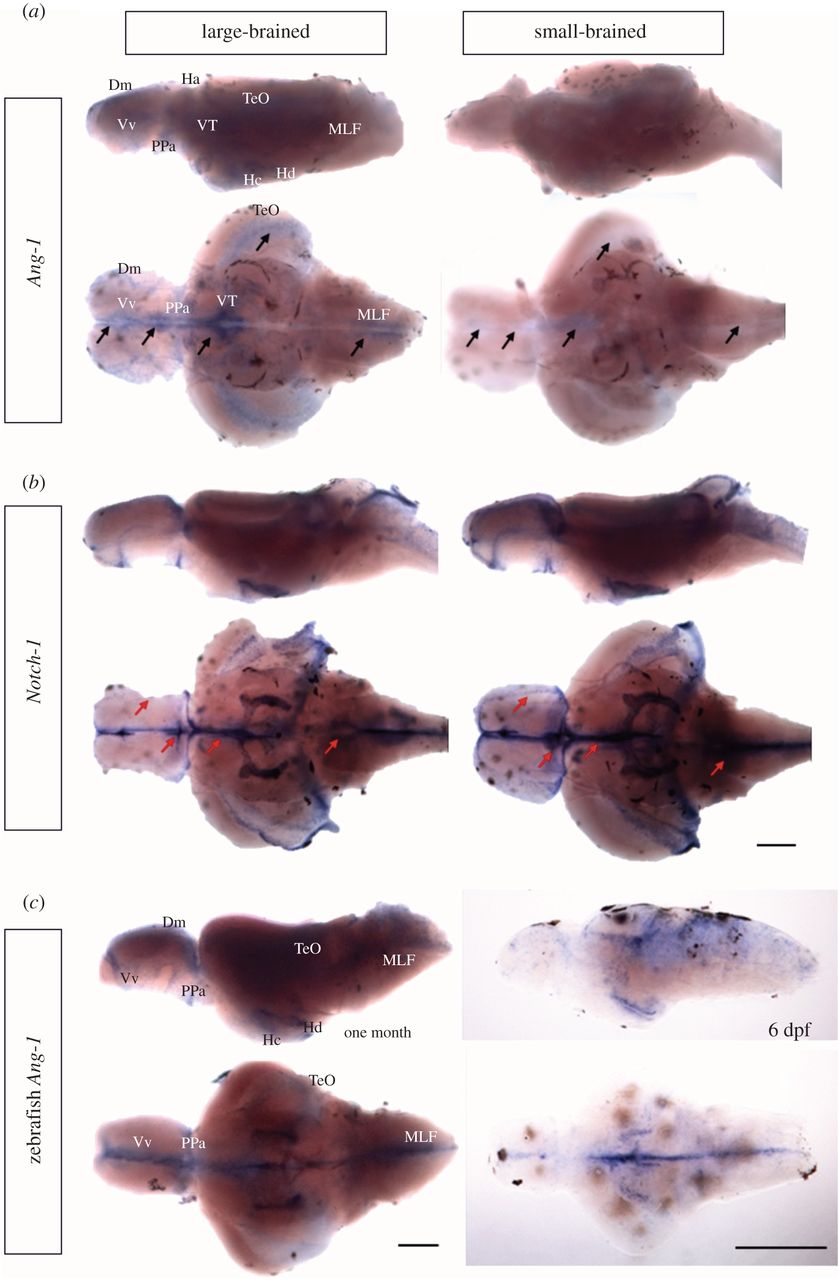

Ang-1 and Notch-1 expression in the guppy fry brains. (a) Expression of guppy Ang-1. (b) Expression of guppy Notch-1. Both Ang-1 and Notch-1 mRNA are present in the medial zone of dorsal telencephalic area (Dm), the ventral nucleus of ventral telencephalic area (Vv), parvocellular preoptic nucleus (PPa), habenula (Ha), ventral thalamus (VT), caudal zone of periventricular hypothalamus (Hc) and dorsal zone of periventricular hypothalamus (Hd), tectum opticum (TeO) and medial longitudinal fascicle (MLF). (c) Ang-1 expression pattern in one-month-old and 6-dpf zebrafish brain. Zebrafish Ang-1 expression is present in Dm, Vv, PPa, Hc, Hd, TeO and MLF. Black and red arrows, respectively, indicate Ang-1 and Notch-1 mRNA difference between the large-brain and the small-brain guppy populations. Scale bars, 200 µm.
