Fig. S6

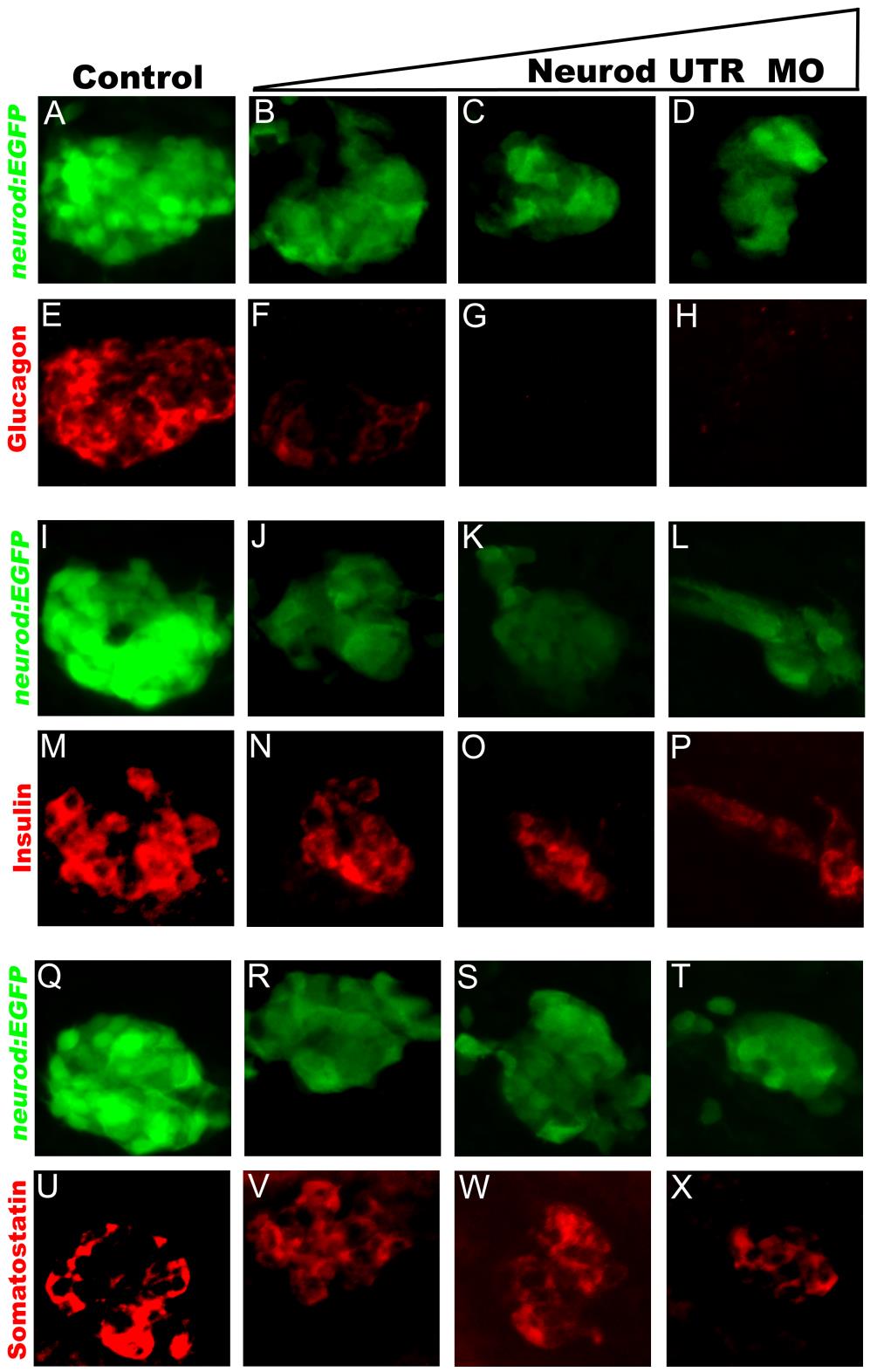

Neurod is also required for differentiation of endocrine cells from the ventral bud. Single channel confocal images (merged z-stacks) of Fig. 4 are shown. Whole mount immunolabeling for glucagon (red, E-F), insulin (red, M-P), somatostatin (red, U-X), GFP (green). Control (A, E, I, M, Q, U), Neurod UTR MO 2 ng (B, F, J, N, R, V), 4 ng (C, G, K, O, S, W) or 8 ng (D, H, L, P, T, X) injected specimens.
