ZFIN Image: Dalgin et al., 2015, Fig. S10


Figure Caption

Fig. S10

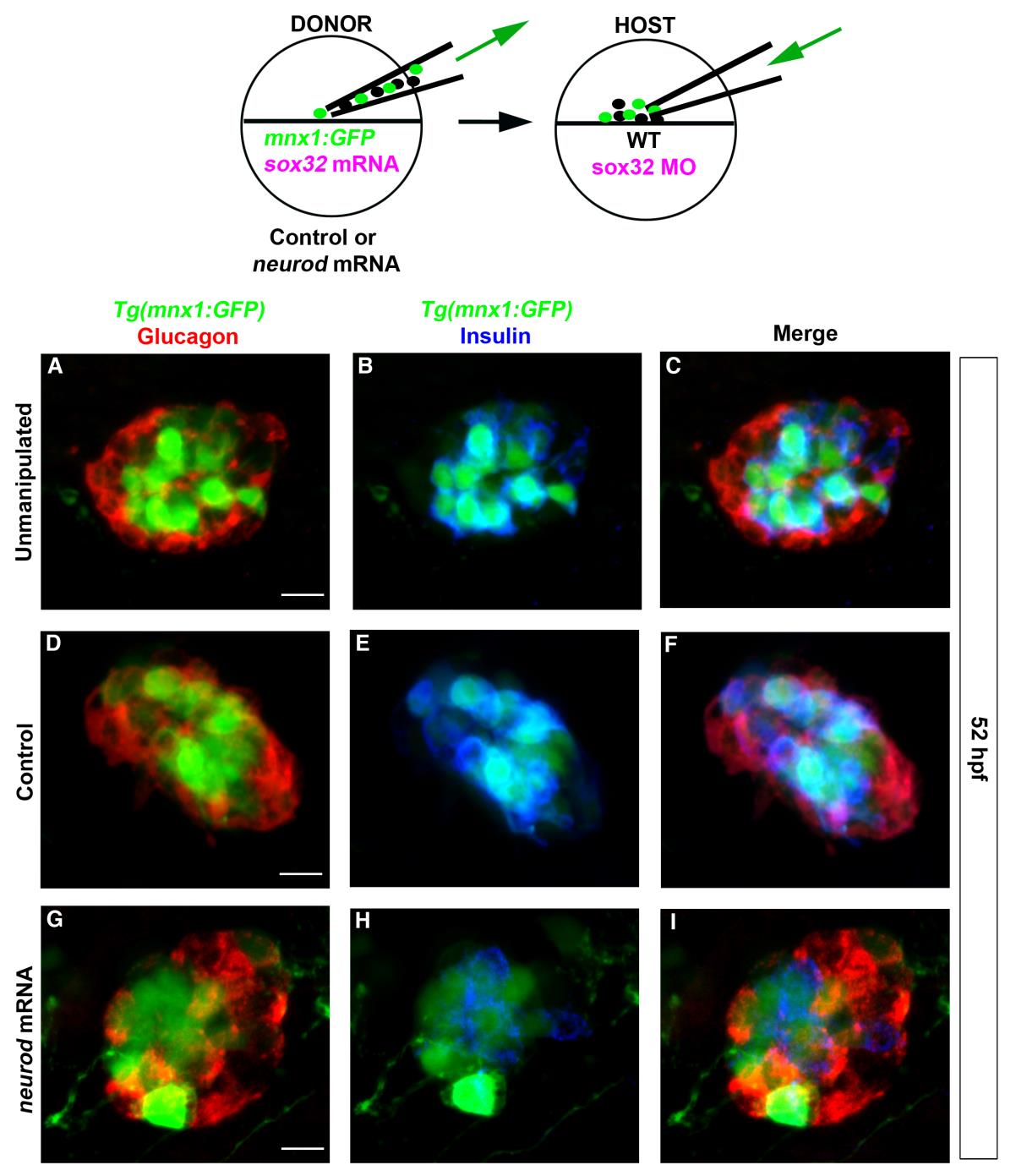

Increased Neurod levels do not promote beta to alpha cell fate change. (Top panel) Transplantation strategy; Tg(mnx1:GFP) donor cells were used to follow the fate of transplanted cells in endoderm deficient wild type hosts. Control or Neurod overexpressing donor cells were mosaic; Tg(mnx1:GFP) (green) or non-Tg(mnx1:GFP) (black). (A-I) Confocal images (merged z-stacks) of representative 52 hpf unmanipulated Tg(mnx1:GFP) specimens (A-C), chimeric specimens in which the entire endoderm is derived from control (D-F), or neurod mRNA injected (G-I) donor cell transplants. Embryos are immunolabeled for EGFP (green), for glucagon (red; A, D, G) and for insulin (blue; B, E, H). EGFP labels donor-derived beta cells (A, B, D, E, G, H). Merged images with all three colors are also shown (C, F, I). Results are representative of 4 chimeric specimens per group. White scale bar=10 µm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 402(1), Dalgin, G., Prince, V.E., Differential levels of Neurod establish zebrafish endocrine pancreas cell fates, 81-97, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
