Fig. 9

ID
ZDB-IMAGE-150602-42
Genes
Source
Figures for Diep et al., 2015
Figure Caption

Fig. 9

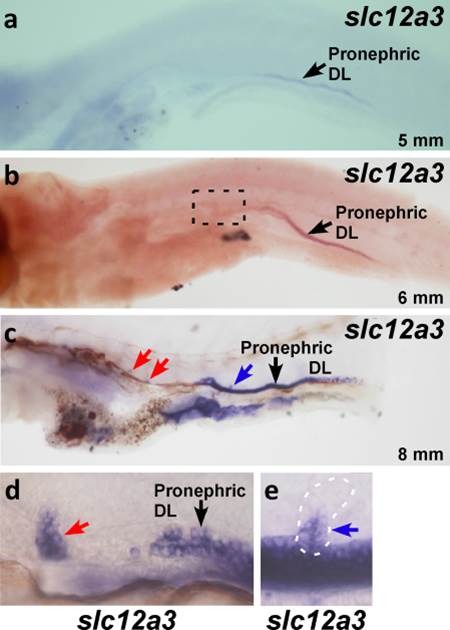

Expression of slc12a3 in the DL. A,B: Whole mount in situ hybridizations of larvae for the slc12a3 marker show that the first mesonephric nephron does not form a DL the 6 mm stage (B dashed box). CE: At the 8 mm stage, both rostral and caudal nephrons express slc12a3 and form on top of the pronephric DE (red arrows) and pronephric DL (blue arrows). D and E are magnified representations of rostral and caudal nephrons at the 8 mm stage. DE: distal early segment; DL: distal late segment.
