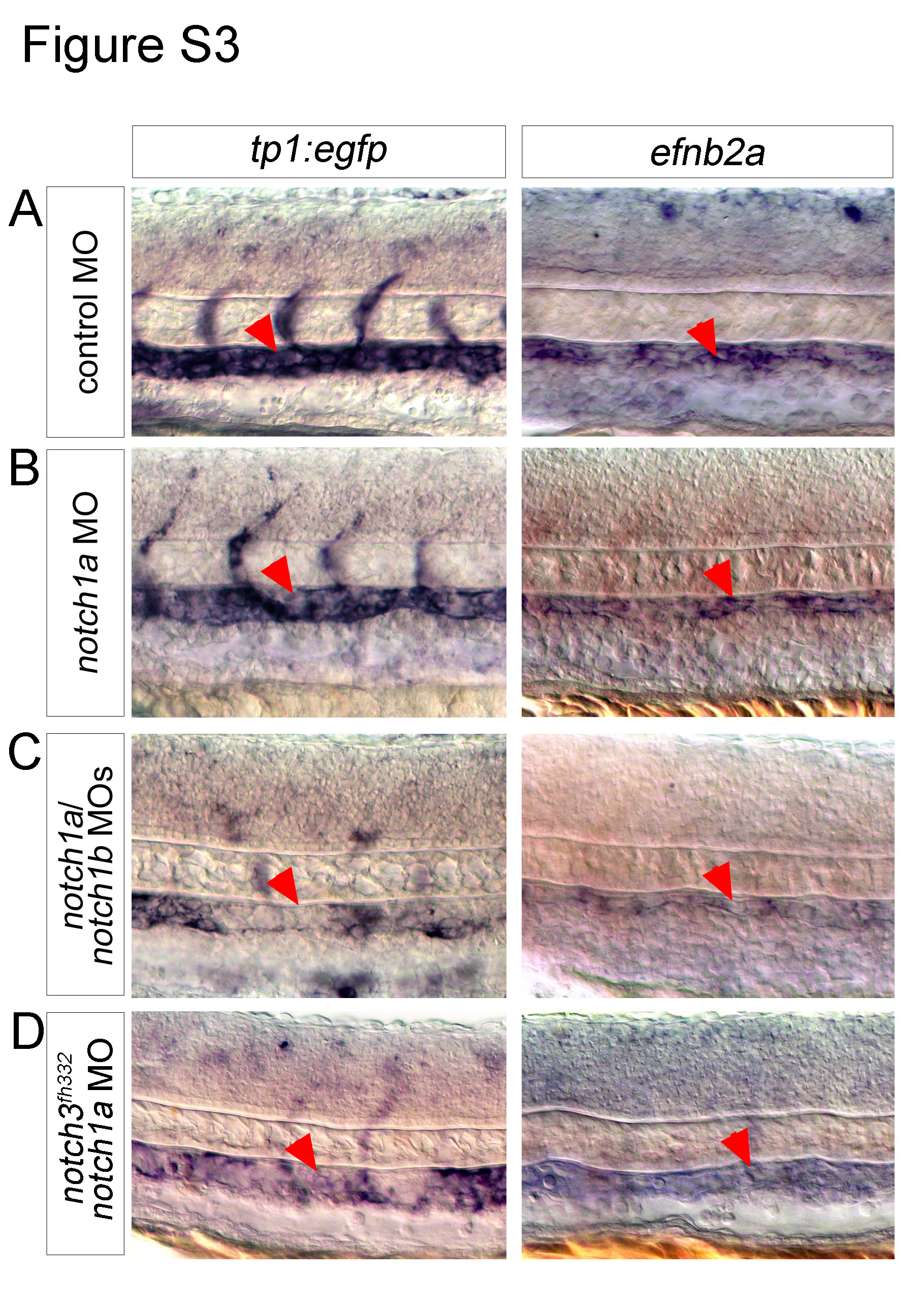

Fig. S3
Multiple Notch receptors contribute to artery differentiation. (A-D) Tg(tp1:egfp)um14 embryos subjected to whole mount in situ hybridization with riboprobes against egfp (left panels) or efnb2a (right panels). Wild type embryos injected with (A) 2.5 ng control MO, (B) 1 ng notch1a MO or (C) 1 ng notch1a and 2.5 ng notch1b MO. (D) notch3fh332 mutant embryo injected with 1 ng notch1a MO. Red arrowheads denote dorsal aorta.
