Fig. 3

ID

ZDB-IMAGE-131211-63

Genes

trpm2

Publication

Kastenhuber et al., 2013 - Phylogenetic analysis and expression of zebrafish transient receptor potential melastatin family genes

All Figures

Figures for Kastenhuber et al., 2013


Figure Caption

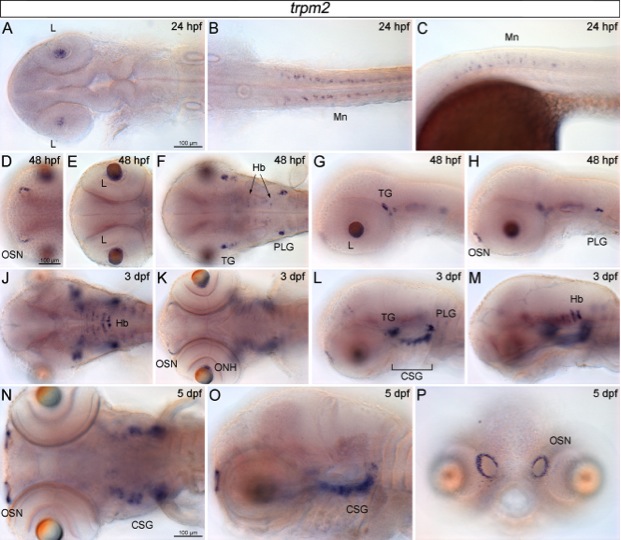

Fig. 3 Dynamic expression pattern of trpm2 during zebrafish development, shown in whole-mount views. A–C: Dorsal (A,B) and lateral (C) views of embryos 24 hours post fertilization (hpf). D–H: Ventral (D–F) and lateral (G,H) views of embryos staged 48 hpf. J–M: The 3 days post fertilization (dpf) larvae shown from the dorsal (J), ventral (K), and lateral (L,M) side, respectively. N–P: Ventral (N), lateral (O), and frontal (P) views of larvae staged 5 dpf. Orientation of zebrafish is with anterior to the left in all pictures but P showing a frontal view. Scale bars of 100 μm are indicated in the first picture of a series until changed. L, lens; Mn, motoneurons; OSN, olfactory sensory neurons; TG, trigeminal ganglia; PLG, posterior lateral line ganglia; Hb, hindbrain; ONH, optic nerve head; CSG, cranial sensory ganglia.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
