Fig. 2

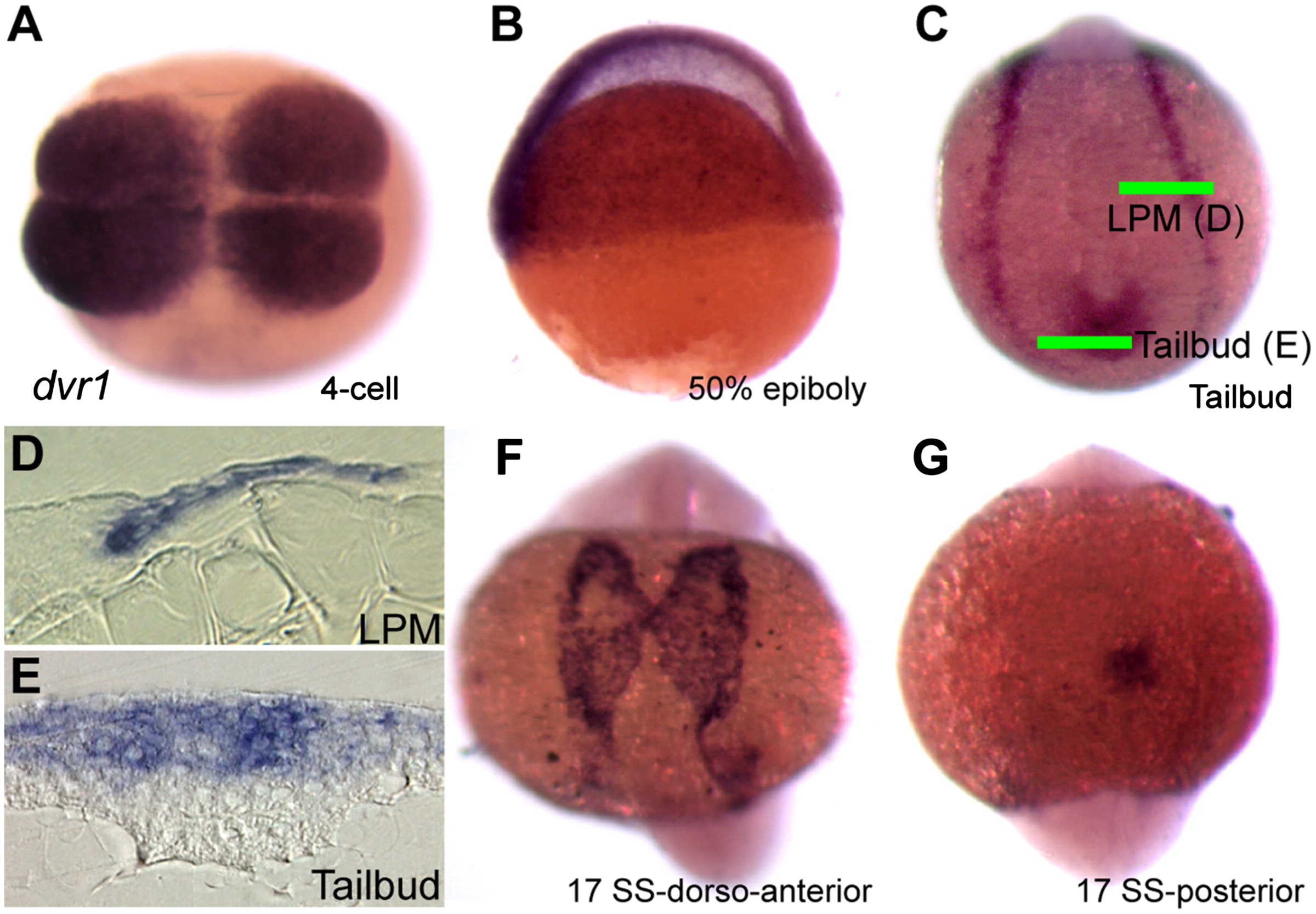

Early expression patterns of dvr1 mRNA. Maternal dvr1 mRNA was detected from (A) 4-cell stage to (B) 50% epiboly. (C) Zygotic dvr1 expression at tailbud stage, in LPM and tailbud. Green bars indicate regions for cross sections in (D) and (E), showing dvr1 expression in LPM and tailbud. (F) Dorso-anterior view of dvr1 expression in the heart field at the 17 SS stage. (G) Posterior view at 17 SS stage, showing persistent tailbud expression and no expression in poserior LPM.
