Fig. S6
- ID
- ZDB-IMAGE-131202-3
- Publication
- Nishiguchi et al., 2013 - Whole genome sequencing in patients with retinitis pigmentosa reveals pathogenic DNA structural changes and NEK2 as a new disease gene
- All Figures
- Figures for Nishiguchi et al., 2013
|
Figure Caption

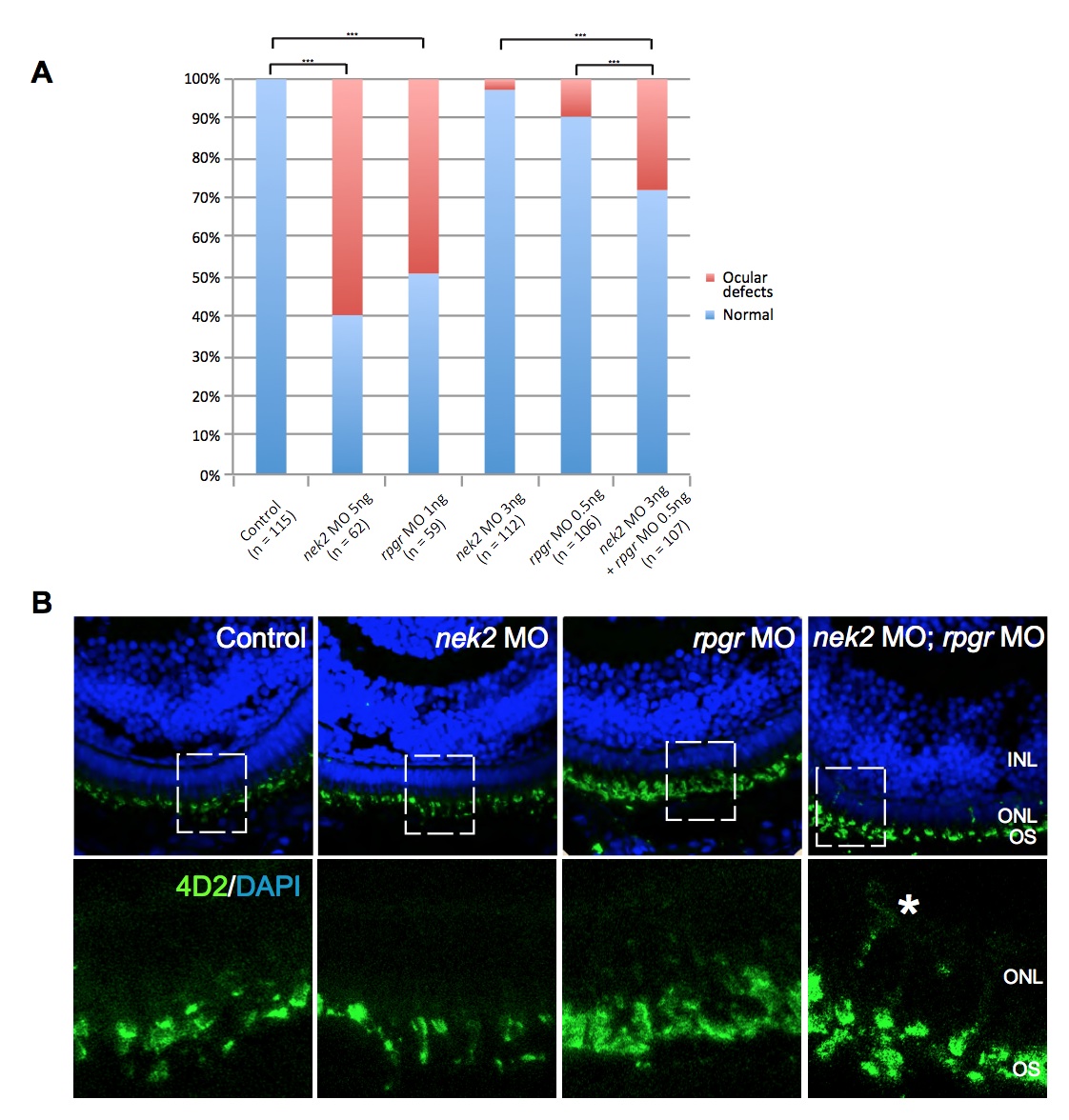

Fig. S6 In vivo functional evaluation of nek2 and rpgr deficiency in zebrafish. (A) Ocular phenotypes are quantified in control, nek2 MO, rpgr MO, and nek2 MO + rpgr MO embryos at full and sub-effective doses. (B) Immunohistochemical analyses of retinal cryosections from control, nek2 MO, rpgr MO, and nek2 + rpgr MO embryos at sub- effective doses, stained with DAPI (blue) and 4D2 antibody (green). Asterisk denotes excessive rhodopsin in the outer nuclear layer (ONL). OS, outer segment of photoreceptors; INL, inner nuclear layer.
