Fig. S1

ID: ZDB-IMAGE-130618-15
Publication: Villefranc et al., 2013 - A truncation allele in vascular endothelial growth factor c reveals distinct modes of signaling during lymphatic and vascular development
All Figures: Figures for Villefranc et al., 2013


Figure Caption

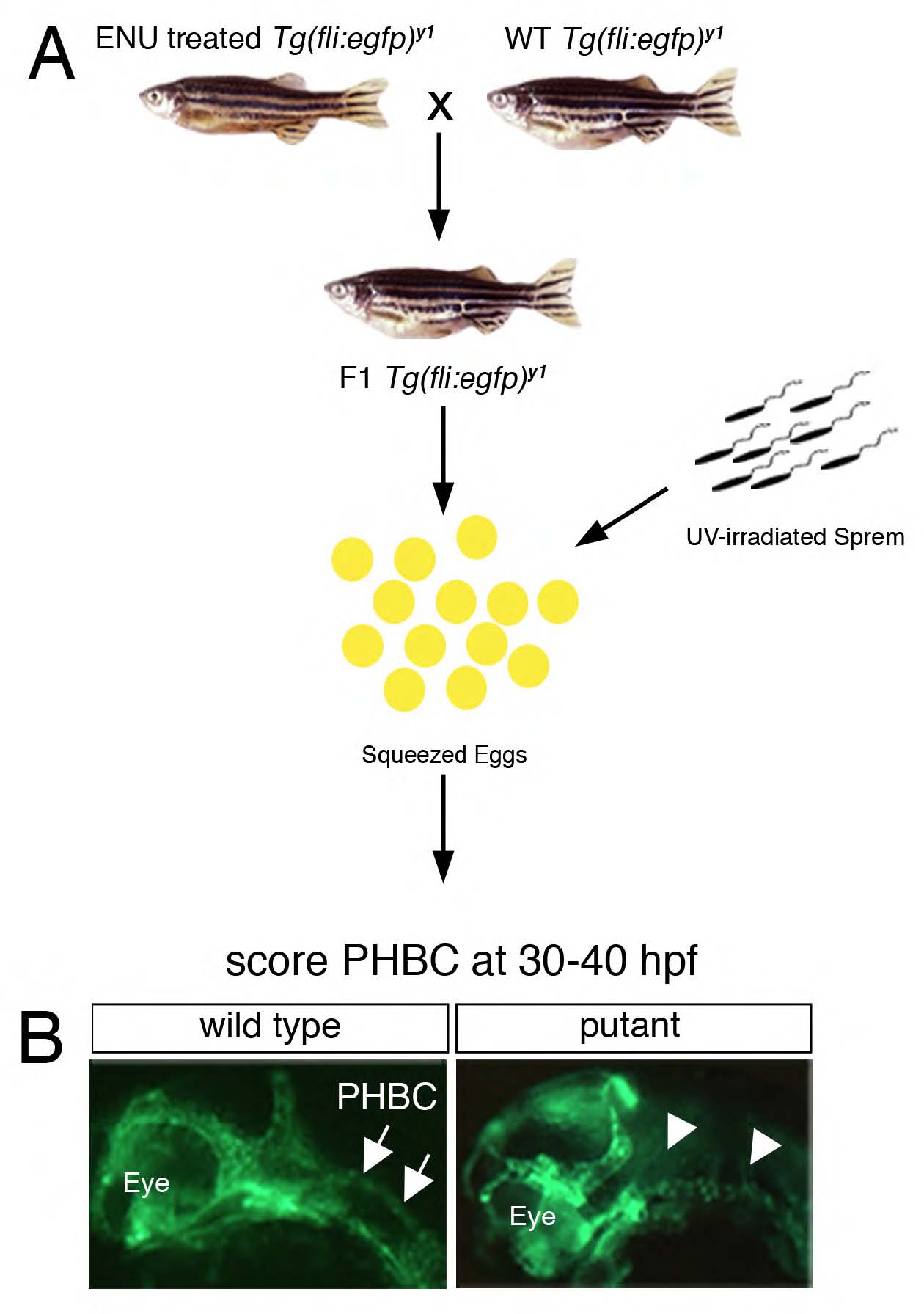

Fig. S1 Transgenic haploid screen in Tg(fli1a:egfp)^y1 zebrafish to identify mutants affecting Vegfc/Flt4 signaling. (A) Tg(fli1a:egfp)^y1 males were treated with N-ethyl-N-nitrosourea (ENU) to induce mutations in the pre-meiotic germline and subsequently outcrossed to wild-type Tg(fli1a:egfp)^y1 females to establish F1 families. Eggs from individual F1 females were fertilized in vitro with UV-irradiated sperm from wild-type males to generate haploid embryos. (B) Epifluorescence images of cranial blood vessels in Tg(fli1a:egfp)^y1 haploid embryos. (Left) Normal primordial hindbrain channel (PHBC) formation (arrows) at 28 hpf. (Right) Putative mutant embryo (‘putant’), which failed to form a PHBC (arrowheads denote location where PHBC normally forms).
