Fig. 7

ID: ZDB-IMAGE-130208-23
Publication: Monk et al., 2013 - Mutation of sec63 in zebrafish causes defects in myelinated axons and liver pathology
All Figures: Figures for Monk et al., 2013


Figure Caption

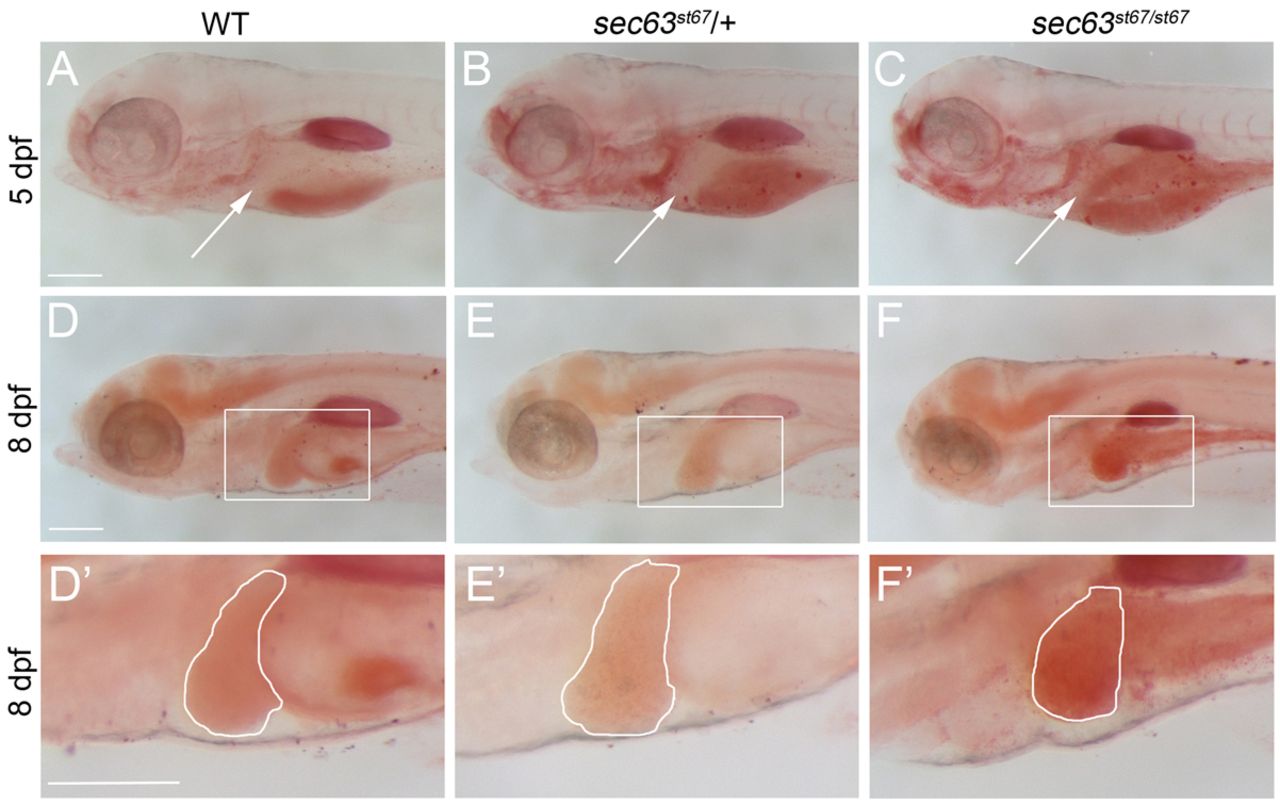

Fig. 7 sec63^st67 mutants develop liver steatosis. (A–F2) Lateral views of larvae stained with Oil Red O of the indicated genotypes and at the indicated developmental stages. (A–C) Arrows indicate the location of the liver in 5 dpf larvae. sec63^st67 mutant livers (C, n=7) are indistinguishable from wild-type (A, n=6) or heterozygous (B, n=12) livers. (D–F) Boxed regions denote the areas enlarged in D′–F′. (D′–F′) Outlines denote the liver in 8 dpf larvae. sec63^st67 mutant livers (F,F′, n=8) show stronger Oil Red O stain than wild-type (D,D′, n=14) or heterozygous (E,E′, n=34) livers. Scale bars: 200 μm.
