ZFIN Image: Won et al., 2012, Fig. 1


Figure Caption

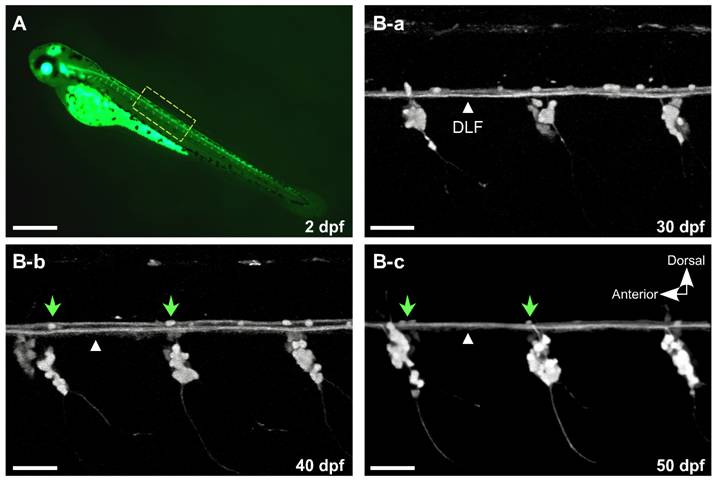

Fig. 1 EGFP expression driven by the Isl2b promoter facilitates observation of dorsal root ganglia development concurrent with degeneration of Rohon-Beard (R-B) neurons.

A, At 2 days post-fertilization (dpf), EGFP was intensely expressed in R-B and DRG neurons. B-a–c, Higher magnification confocal images of the spinal cord in isl2b:EGFP at 30, 40 and 50 dpf. A few EGFP-labeled cells remained over the dorsal longitudinal fasciculus (DFL, white triangles) that progressively decreased until only ~1–3 cells/field remained (B-b and c, green arrow heads). All images are maximum intensity projections of z-stacks acquired in the lateral plane using confocal microscopy. The contrast of the images was adjusted to emphasize EGFP-labeled sensory neurons. Scale bar in A represents 0.5 mm and the other scale bars represent 50 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
