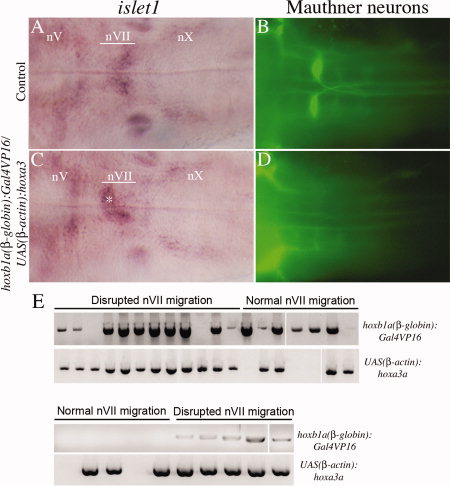

Fig. 6 Characterization of embryos from a hoxb1a(β-globin):Gal4VP16^um60/UAS(β-actin):hoxa3a^um61 cross. Embryos were collected at 48 hpf and assayed for expression of islet1 to detect motor neurons (A, C) and 3A10 to detect Mauthner neurons (B, D). E: Embryos with normal or abnormal nVII migration were picked from two representative experiments and genotyped by PCR for the presence of the Gal4VP16 and the UAS:Hoxa3a transgene. nV, trigeminal motorneuron; nVII, facial motorneuron; nX, vagal motorneuron. Asterisk in C indicates nVII neurons remaining in r4. All embryos are in dorsal view with anterior to the left.
