ZFIN Image: Boggetti et al., 2012, Fig. 5


Figure Caption

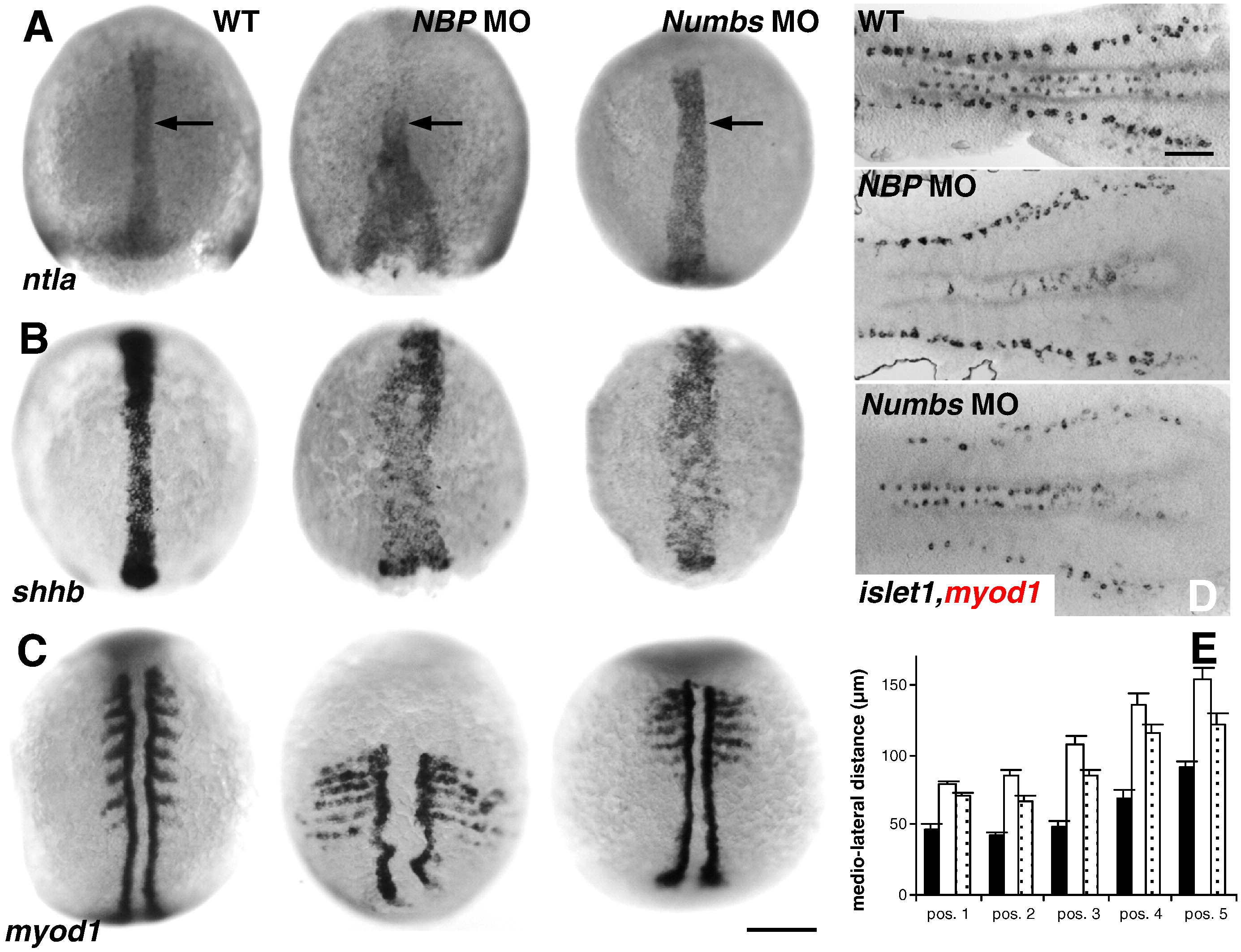

Fig. 5

NBP and Numbs morphants are defective in C&E movements. Panels compare NBP morphants (NBP MO) and Numbs morphants (Numbs MO) with wild-type embryos (WT). A–C show dorsal view, anterior up. D shows flat preparations, anterior to the left. (A) ntla, 80% epiboly stage. Arrow indicates the notochord. (B) shhb, 90% epiboly stage. (C) myod1, six-somite stage. (D) islet1, myod1, six-somite stage. (E) Mediolateral distance (in μm) in five different positions along the anterior–posterior axis in NBP MO (open columns), Numbs MO (dotted columns) and wild-type embryos (filled columns). Scale bar: A–C = 200 μm, and D = 50 μm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 365(1), Boggetti, B., Jasik, J., Takamiya, M., Strähle, U., Reugels, A.M., and Campos-Ortega, J.A., NBP, a zebrafish homolog of human Kank3, is a novel Numb interactor essential for epidermal integrity and neurulation, 164-174, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
