ZFIN Image: Langenbacher et al., 2012, Fig. 1


Figure Caption

Fig. 1

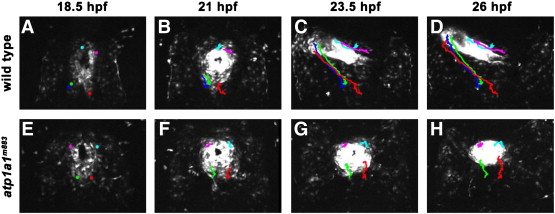

Sodium pump function is important for cardiomyocyte migration and heart tube elongation. (A–D) Time-lapse images showing a dorsal view (anterior to top) of heart morphogenesis in a wild type Tg(myl7:EGFP) embryo. After arriving at the midline, wild type cardiomyocytes rapidly migrate anteriorly and leftward between 18.5 and 26 hpf, generating the heart tube. (E–H) Time-lapse images showing a dorsal view (anterior to top) of heart morphogenesis in a atp1a1^m883 mutant Tg(myl7:EGFP) embryo. Cardiomyocytes migrate to the midline normally in the majority of atp1a1^m883 mutants (E), but only exhibit limited migration from 18.5 to 26 hpf. At 26 hpf, atp1a1^m883 mutants have a clump of cardiomyocytes at the midline (H).

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 362(2), Langenbacher, A.D., Huang, J., Chen, Y., and Chen, J.N., Sodium pump activity in the yolk syncytial layer regulates zebrafish heart tube morphogenesis, 263-270, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
