ZFIN Image: Dohn et al., 2012, Fig. S7


Figure Caption

Fig. S7

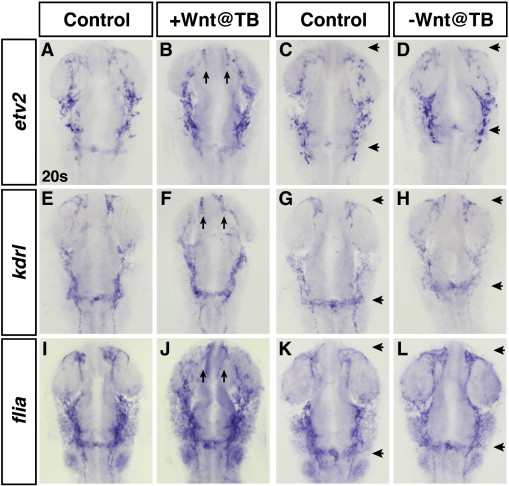

Modulation of Wnt signaling at the TB stage does not significantly affect hemangioblast and endothelial marker genes. (A,C,E,G,I,K) HCSEs. (B,D,F,H,J,L) GFP + embryos. Increased Wnt signaling at the TB stage does not lead to a discernible increase in etv2 (B), a hemangioblast marker, or kdrl (F) or fli1a (J), vascular markers. Arrows in B, F, and J indicate aberrant formation of anterior cerebral veins. (D,H,L) Embryos with decreased Wnt signaling at the TB stage. Decreased Wnt signaling does not cause a discernible decrease in etv2 (D), kdrl (H) or fli1a (L). Although the specification of these lineages does not appear affected, there is a rostral shift of the mandibular arch and endocardial knot (distance between arrows in D,H,L compared to C,G,K).
