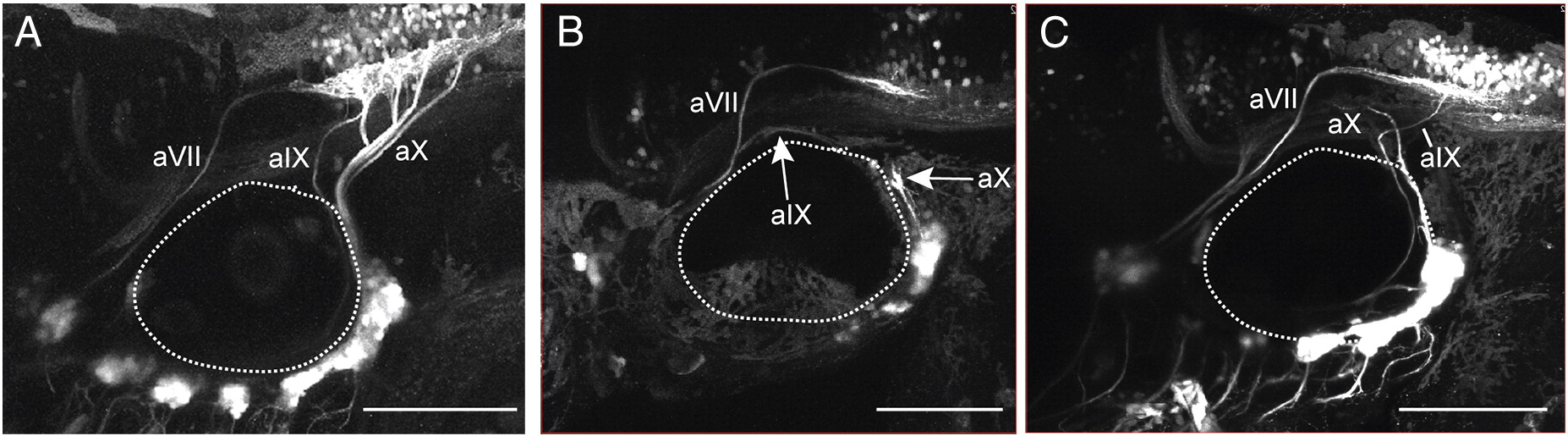

Fig. 9 Gli1 null mutants exhibit defects in the central afferent projections of gIX and gX, but not gVII. A: lateral view of a control 4 dpf 3.2:gfp larva; B and C: lateral view of GFP+ neurons and their axons in two different 4 dpf gli1 - / -;3.2:gfp null mutants. Notice misrouting of the aIX and aX axons in B and aX in C. In both larvae aVII is unaffected. aVII, central afferents of gVII; aIX, central afferents of gIX; aX, central afferents of gX; dotted circle indicates the otic vesicle. Anterior to left, dorsal at top. Scale bars are 100 μm.
