ZFIN Image: Cox et al., 2011, Fig. 8


Figure Caption

Fig. 8

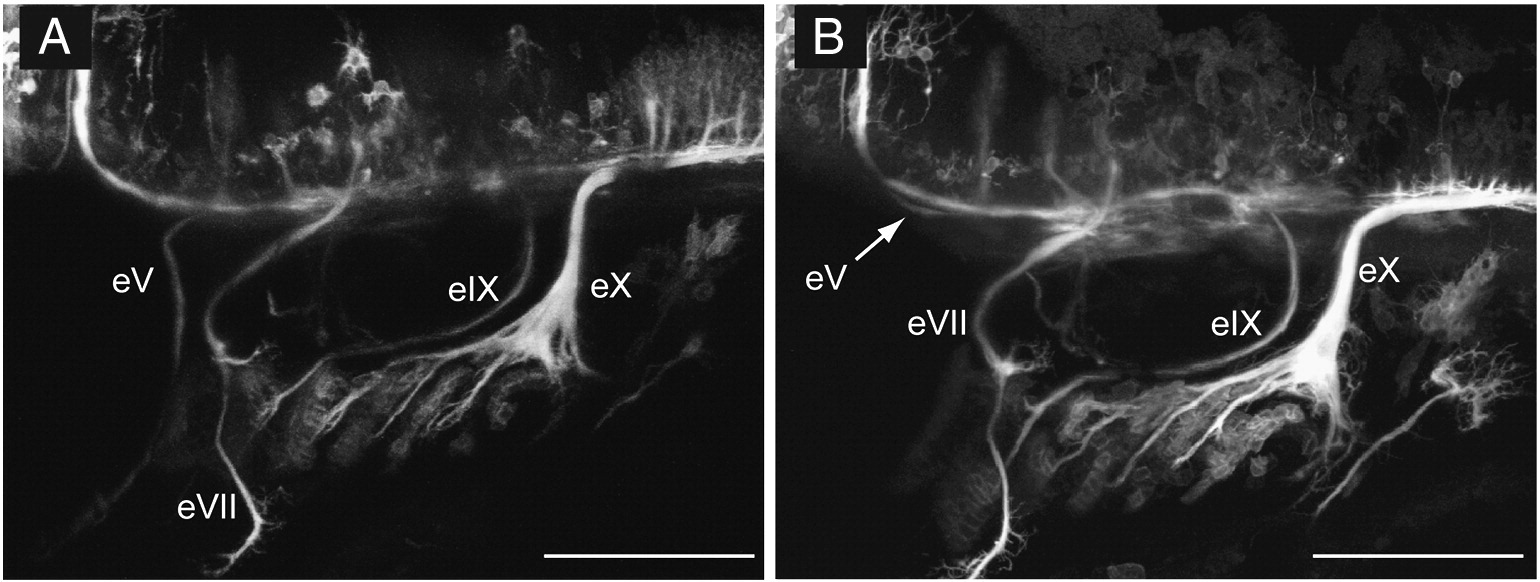

Only bmnV efferent pathfinding is affected in ngn1 morphants. Panel A is a lateral view of a control nkx:mgfp embryo at 52 hpf showing the typical appearance of branchiomeric efferent axons. Panel B is a lateral view of an embryo injected with the ngn1-MO at 52 hpf. As can be seen, only the bmnV efferents (indicated by the arrow) exhibited abnormal pathfinding as they traveled in an anterior, rather than ventral, direction: the other three branchiomeric efferents project normally. eV, bmnV efferents; eVII, bmnVII efferents; eIX, bmnIX efferents; eX, bmnX efferents. In both images, anterior is to the left and dorsal at the top. Scale bars are 100 μm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 357(2), Cox, J.A., Lamora, A., Johnson, S.L., and Voigt, M.M., Diverse mechanisms for assembly of branchiomeric nerves, 305-17, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
