Fig. S9

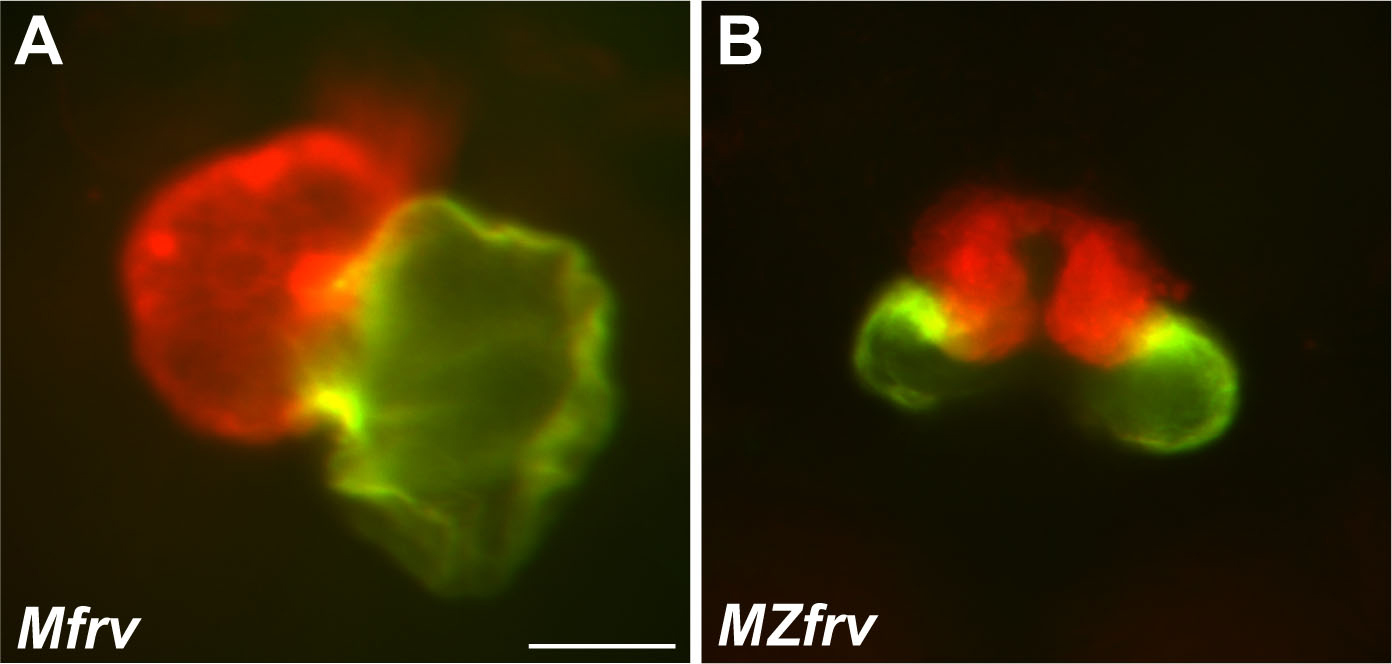

MZfrv mutant hearts are bifurcated. Ventral views of hearts at 48 hpf. (A) Immunofluorescence employing the MF20 and S46 antibodies demonstrates that Mfrv mutant embryos develop normally looped hearts with a distinct ventricle (red) and atrium (yellow). (B) In MZfrv mutant embryos, the heart is bifurcated with subdivided ventricular (red) and atrial (yellow) chambers. Scale bar: 50 μm.
