Fig. 6

ID
ZDB-IMAGE-110712-30
Genes
Source
Figures for Fortunato et al., 2011
Figure Caption

Fig. 6

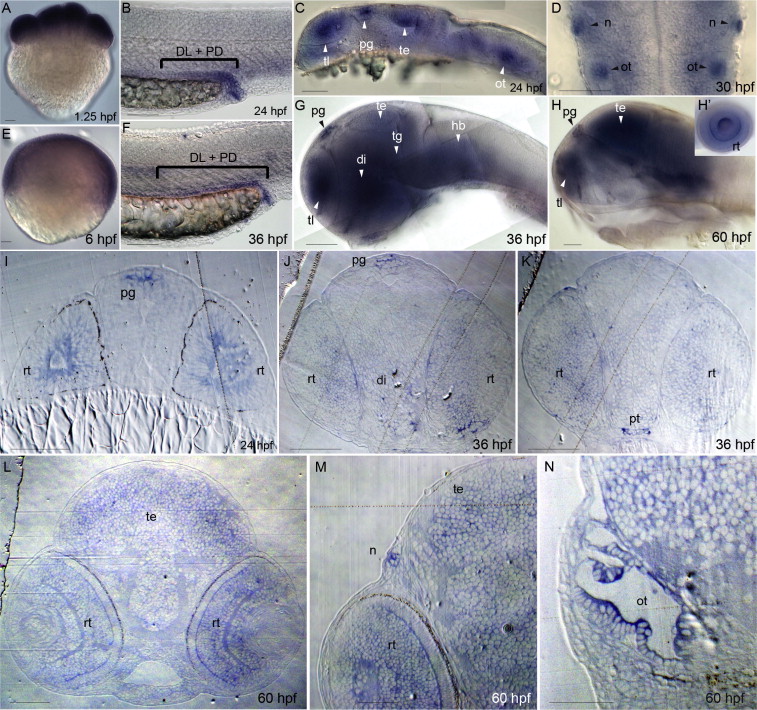

Developmental expression of soul4. (A and E) lateral view, animal pole to the top; (B, C, F, G and H) lateral view, anterior to the left; (D) dorsal view, anterior to the top. Maternal distribution of soul4 mRNA in all blastomeres at 1.25 hpf (A). soul4 transcription in the whole embryo at the gastrula stage (E). Expression in eyes, telencephalon, pineal gland, optic tectum, and otic vesicles at 24 hpf (C and I), and in retina, diencephalon, pituitary gland, tegmentum, hindbrain, otic vesicles, olfactory vesicles and neuromasts at 30 and 36 hpf (D, G, J and K). In (H and L), soul4 transcription in the telencephalon, pineal gland and optic tectum at 60 hpf. Expression in the inner layer of the retina (H2 and L), neuromasts (M) and otic vesicles and (N) at 60 hpf. In (B and F) expression of soul4 in distinct segments of the pronephros at 20 and 36 hpf. di, diencephalon; DL, distal late; hb, hindbrain; n, neuromast; ol, olfactory vesicle; ot, otic vesicle; PD, pronephric duct; pg, pineal gland; pt, pituitary gland; rt, retina; te, optic tectum; tg, tegmentum; tl, telencephalon. Black bars correspond to 100 μm.
