ZFIN Image: Fortunato et al., 2011, Fig. 4


Figure Caption

Fig. 4

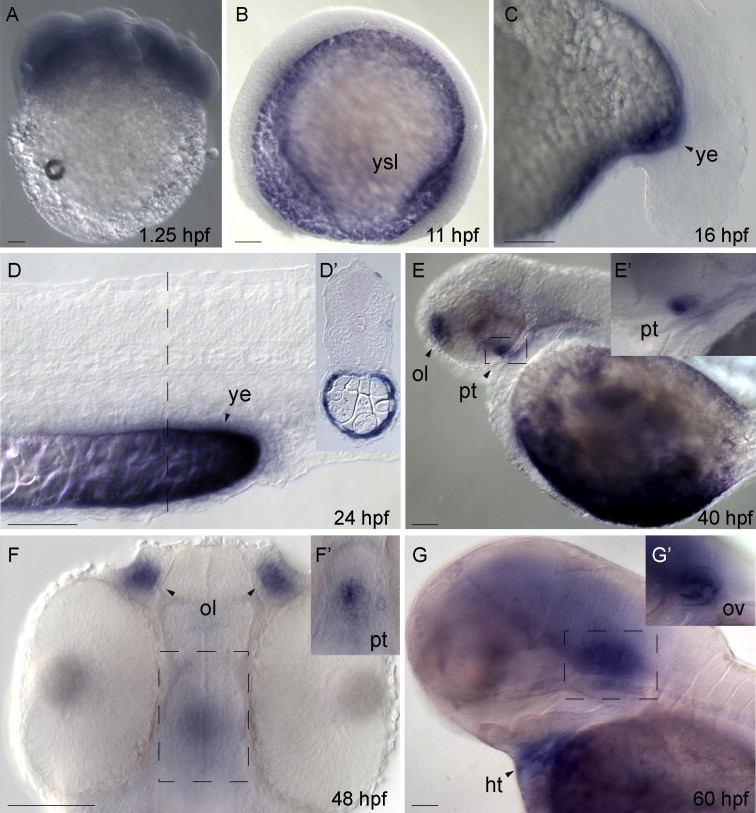

Developmental expression of soul1. (A), lateral view, animal pole to the top; (B–D, E, E2, G and G2) lateral view, anterior to the left; (D2) transverse resin section; (F and F2) ventral view, anterior to the top. Maternal soul1 mRNA is uniformly distributed at blastula stage (A). From 11 hpf, soul1 transcription is detected in the yolk syncytial layer (B), where its distribution becomes associated with the yolk extension as shown at 16 hpf (C) and 24 hpf (D and D2). Shown in (E and F) soul1 expression in the olfactory vesicles and pituitary gland (dotted box, enlarged in E2 and F2) at 40 and 48 hpf. In (G), soul1 expression in the heart and otic vesicles at 60 hpf (dotted box, enlarged in G2). ht, heart; pt, pituitary gland; ol, olfactory vesicle; ot, otic vesicle; ye, yolk extension; ysl, yolk syncytial layer. Black bars correspond to 100 μm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 11(5-6), Fortunato, A.E., Langellotto, F., and Sordino, P., Identification and expression of soul/p22HBP genes in zebrafish, 360-369, Copyright (2011) with permission from Elsevier. Full text @ Gene Expr. Patterns
