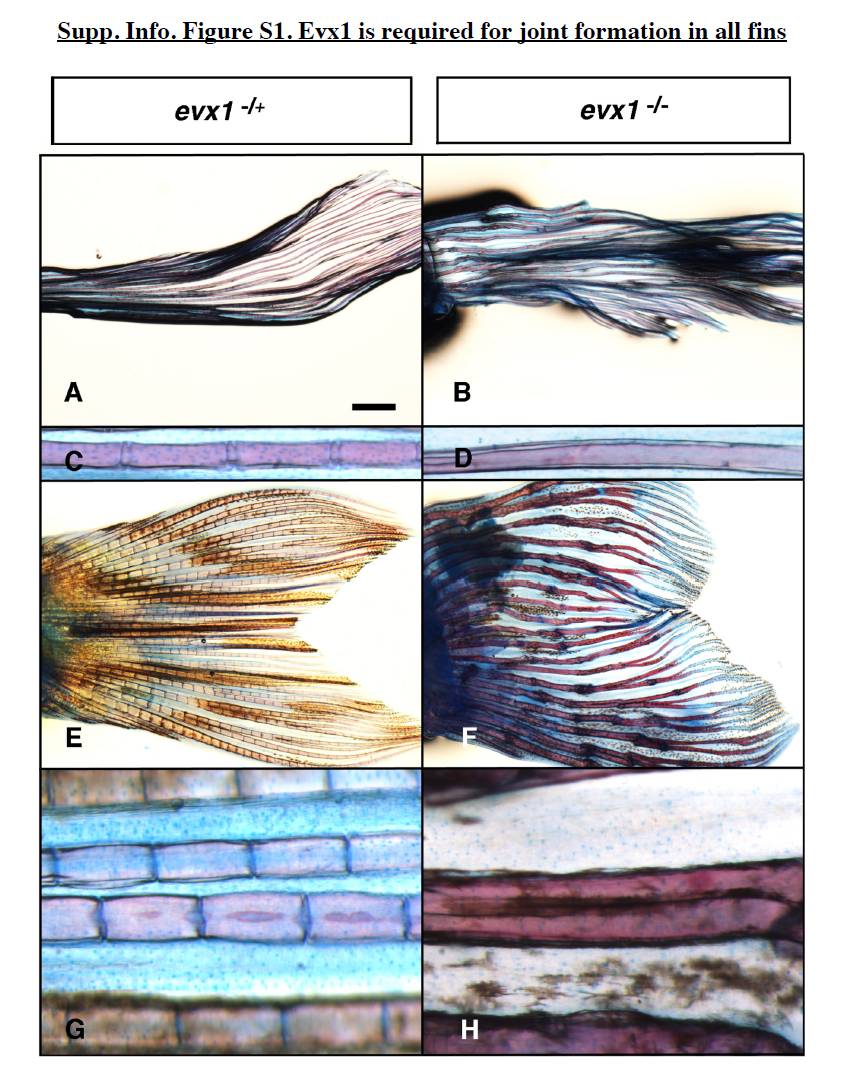

Fig. S1 Evx1 is required for joint formation in all fins. A–H: Lateral views of Alcian blue/Alizarin red staining in wild-type (WT) or heterozygous siblings (A,C,E,G) and evx1 mutant (B,D,F,H) adult zebrafish. Anterior is left. A–D: Pectoral fins in the TL background. E–H: Caudal fins in the AB background. Scale bar = 1.4 mm in A,B, 100 μm in C,D, 1 mm in E,F, 64 μm in G,H.
