ZFIN ID: ZDB-IMAGE-110322-33
Figures for Pikulkaew et al., 2011

Figure Caption/Comments:

Fig. 5

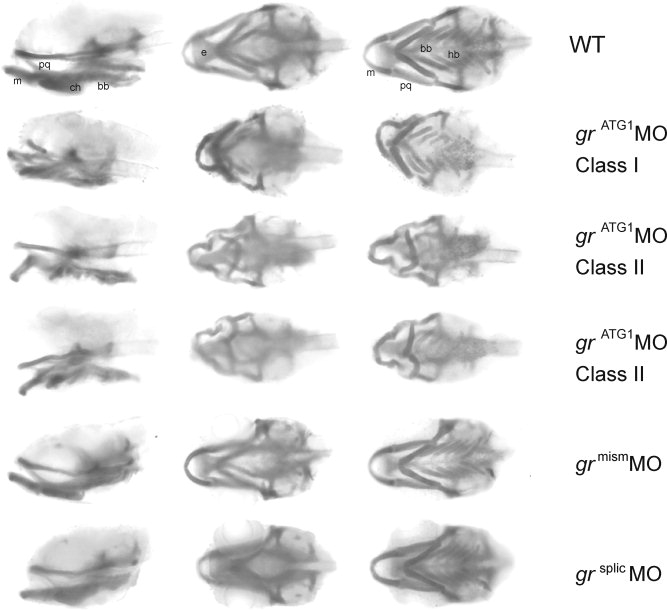

Alcian blue staining of zebrafish WT and MO-injected embryos at 6 dpf (except grmismMO and grsplicMO that were analyzed at 5 dpf) showing alterations of the cartilaginous structures in grATGMO morphants. Malformations are of greater severity in class II than class I embryos. Right, middle, and left images: lateral, dorsal, and ventral views, respectively. M, Meckel′s cartilage; pq, palatoquadrate; ch, ceratohyal; bb, basibranchial; e, ethmoid plate; hb, hypobranchial.
