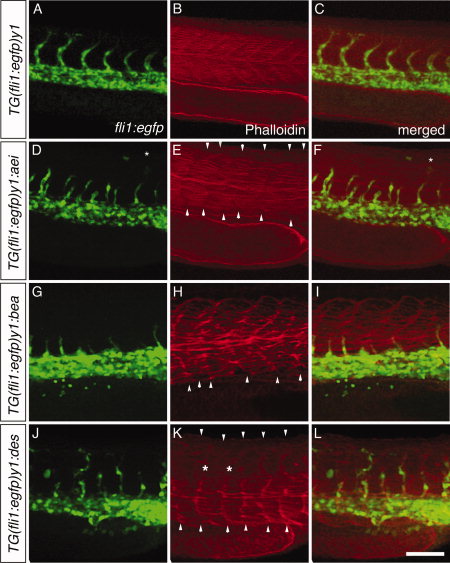

Fig. 4 ISVs follow the irregular somite boundaries in Notch mutants. Wildtype (A-C) and Notch mutant embryos, aei (D–F), bea (G-I), and des (J-L), were stained with phalloidin to reveal somitic actin fibres (in red; B,E,H,K). The ISV vascular pattern revealed by the green fluorescence of the fli1:EGFP embryos (A,D,G,J) is seen correlating with the somitic boundaries (B,E,H,K) in the merged images (C,F,I,L). Asterisks indicate misplaced ISV over somite. Scale bar = 100 μm.
