Fig. 4
- ID
- ZDB-IMAGE-101104-54
- Genes
- Publication
- Aamar et al., 2010 - Sox17 and chordin are required for formation of Kupffer's vesicle and left-right asymmetry determination in zebrafish
- All Figures
- Figures for Aamar et al., 2010
|
Figure Caption

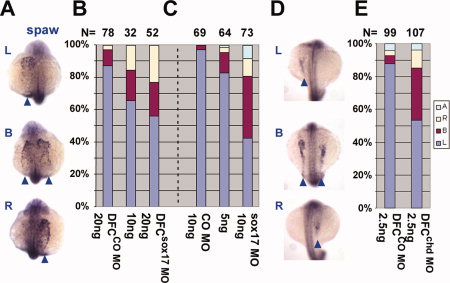

Fig. 4 Sox17 and chd are required for left-right asymmetry determination in zebrafish. Embryos were injected into the yolk at one-cell (C) or midblastula (A,B,D,E) stages, with CO MO (B,C,E), sox17 MO (A and B,C), or chd MO (D and E) as indicated in the bar graphs. Whole mount in situ hybridization for spaw (A,D: arrowheads, 15-18 somite; dorsal view with anterior on top) showed aberrant expression when either sox17 MO or chd MO was injected, as summarized in B,C, and E. L, left; B, bilateral; R, right; A, absent. Number of embryos is shown at the top.
