Fig. S3

ID
ZDB-IMAGE-100504-48
Genes
Source
Figures for Hartnett et al., 2010
Figure Caption

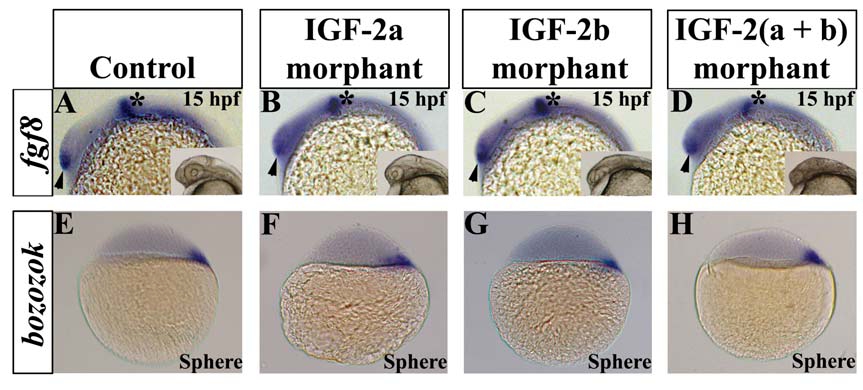

Fig. S3 Expression of fgf8 and bozozok in IGF-2 morphant embryos. (A-D) Knockdown of igf-2a and/or igf-2b does not disrupt patterning of the telencephalon (arrowhead) and the midbrain-hindbrain boundary (asterisk) during the segmentation stage in zebrafish development. (Inset) Anterior region of 24 hpf control and morphant embryos showing disrupted neural structures in morphants. (E-H) Expression of bozozok is unaffected in IGF-2 morphant embryos. Frequency of embryos displaying this staining pattern; B, 30/30; C, 28/28; D, 32/32; F, 60/60; G, 59/59; H, 42/42. All embryos are shown in a lateral view.
