ZFIN Image: Albalat et al., 2010, Fig. 4


Figure Caption

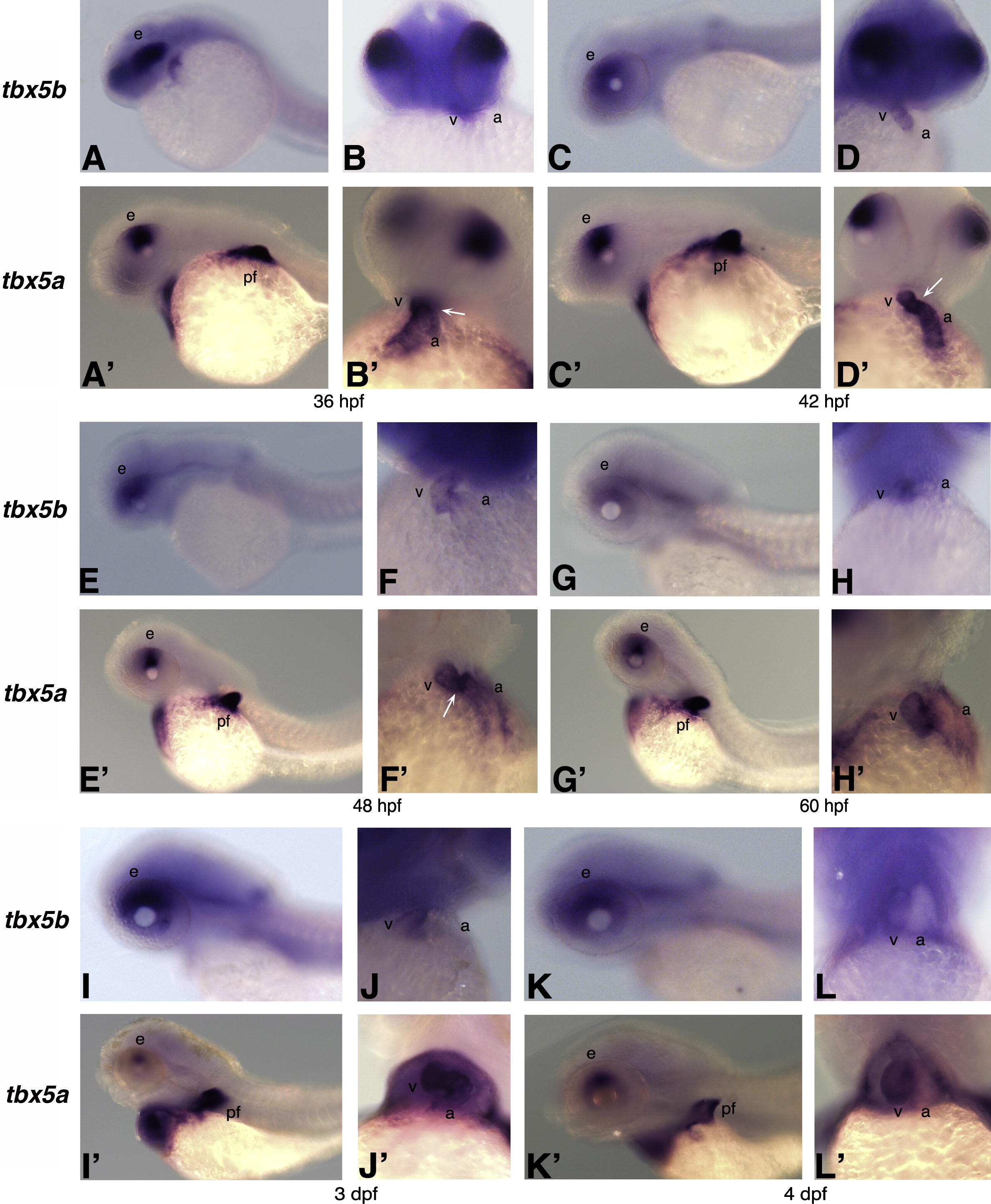

Fig. 4 tbx5a and tbx5b expression during later stages of zebrafish development. tbx5b (A–L) is mainly co-expressed with tbx5a in the developing eyes and heart whereas pectoral fin cells only express tbx5a (A′–L′). Lateral views from the left side with anterior to the left are shown for 36 hpf (A–A′), 42 hpf (C–C′), 48 hpf (E–E′), 60 hpf (G–G′), 3 dpf (I–I′) and 4 dpf (K–K′) embryos. Detailed heart expression is better observed in ventral views with anterior to the top of 36 hpf (B–B′), 42 hpf (D–D′), 48 hpf (F–F′), 60 hpf (H–H′), 3 dpf (J–J′) and 4 dpf (L–L′) embryos. a, atrium; e, eye; pf, pectoral fin; v, ventricle.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 10(1), Albalat, R., Baquero, M., and Minguillón, C., Identification and characterisation of the developmental expression pattern of tbx5b, a novel tbx5 gene in zebrafish, 24-30, Copyright (2010) with permission from Elsevier. Full text @ Gene Expr. Patterns
