Fig. 4
- ID
- ZDB-IMAGE-100211-7
- Publication
- Chuang et al., 2010 - The zebrafish homeobox gene irxl1 is required for brain and pharyngeal arch morphogenesis
- All Figures
- Figures for Chuang et al., 2010
|
Figure Caption

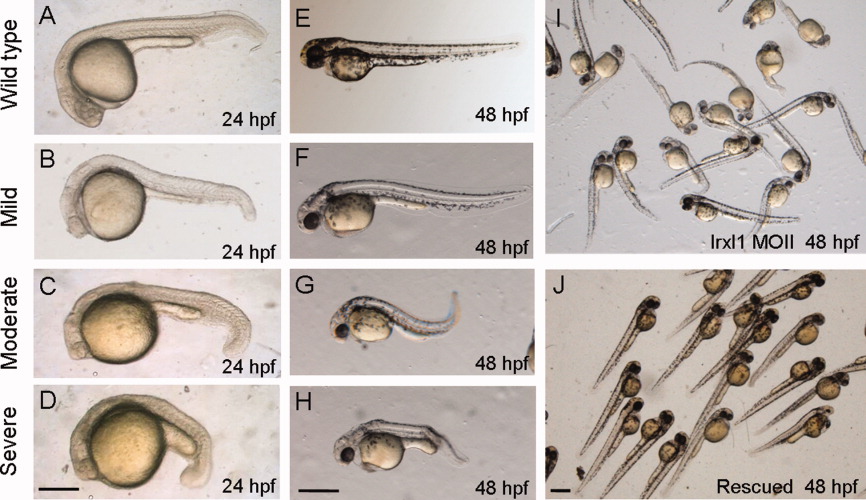

Fig. 4 Gross morphological phenotypes of the irxl1 MOII morphants. A-H: The embryos were injected with 0.5 pmol MOII and observed at 24 hours postfertilization (hpf; A-D) and 48 hpf (E-H). They are grouped into four classes as defined in the text. The overall pictures of MOII morphants (I) and embryos rescued with 400 pg irxl1(a+b) cRNA (J) at 48 hpf are shown for comparison. MO, morpholino oligonucleotides. Scale bars = 500 μm in A-D, 700 μm in E-J.
