ZFIN Image: Mönnich et al., 2009, Fig. 2


Figure Caption

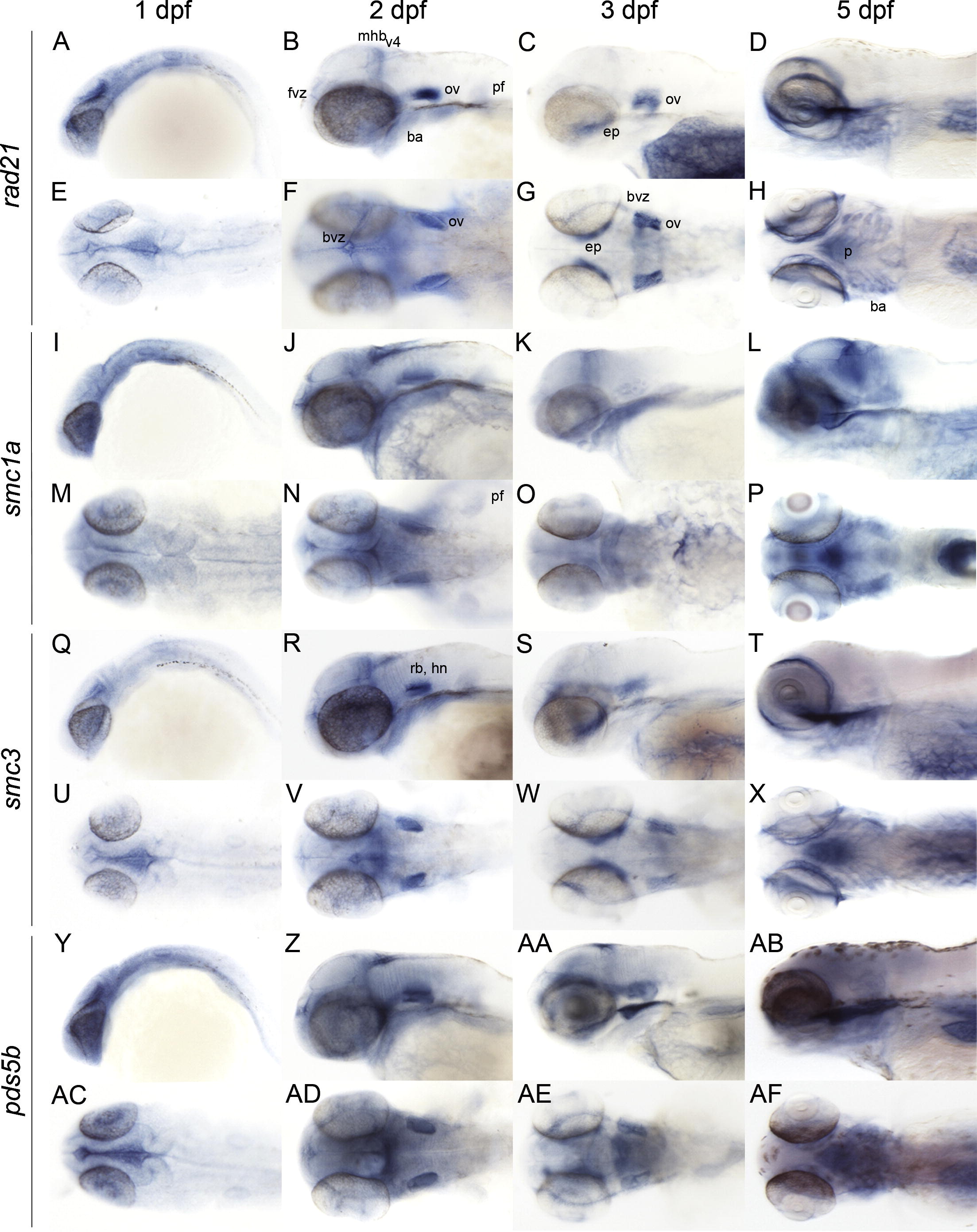

Fig. 2 Late embryonic and larval expression (1–5 dpf) of genes encoding zebrafish cohesin subunits. Whole mount in situ hybridization of zebrafish at the indicated stages with antisense riboprobes detecting the following mRNAs: (A–H) rad21. (I–P) smc1a. (Q–X) smc3. (Y–AF) pds5b. A–D, I–L, Q–T, Y–AB: lateral views. E–H, M–P, U–X, AC–AF: dorsal views. Anterior is to the left for all. ba, branchial arches; bvz, brain ventricular zone; ep, ethmoid plate; fvz, forebrain ventricular zone; hn, hindbrain neurons; mhb, midbrain hindbrain boundary; ov, otic vesicle; p, pharynx; pf, pectoral fin; rb, rhombomeres boundaries; v4, 4th ventricle.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 9(8), Mönnich, M., Banks, S., Eccles, M., Dickinson, E., and Horsfield, J., Expression of cohesin and condensin genes during zebrafish development supports a non-proliferative role for cohesin, 586-594, Copyright (2009) with permission from Elsevier. Full text @ Gene Expr. Patterns
