Fig. S2
- ID
- ZDB-IMAGE-091016-61
- Publication
- Liu et al., 2009 - Fish-specific duplicated dmrt2b contributes to a divergent function through Hedgehog pathway and maintains left-right asymmetry establishment function
- All Figures
- Figures for Liu et al., 2009
|
Figure Caption

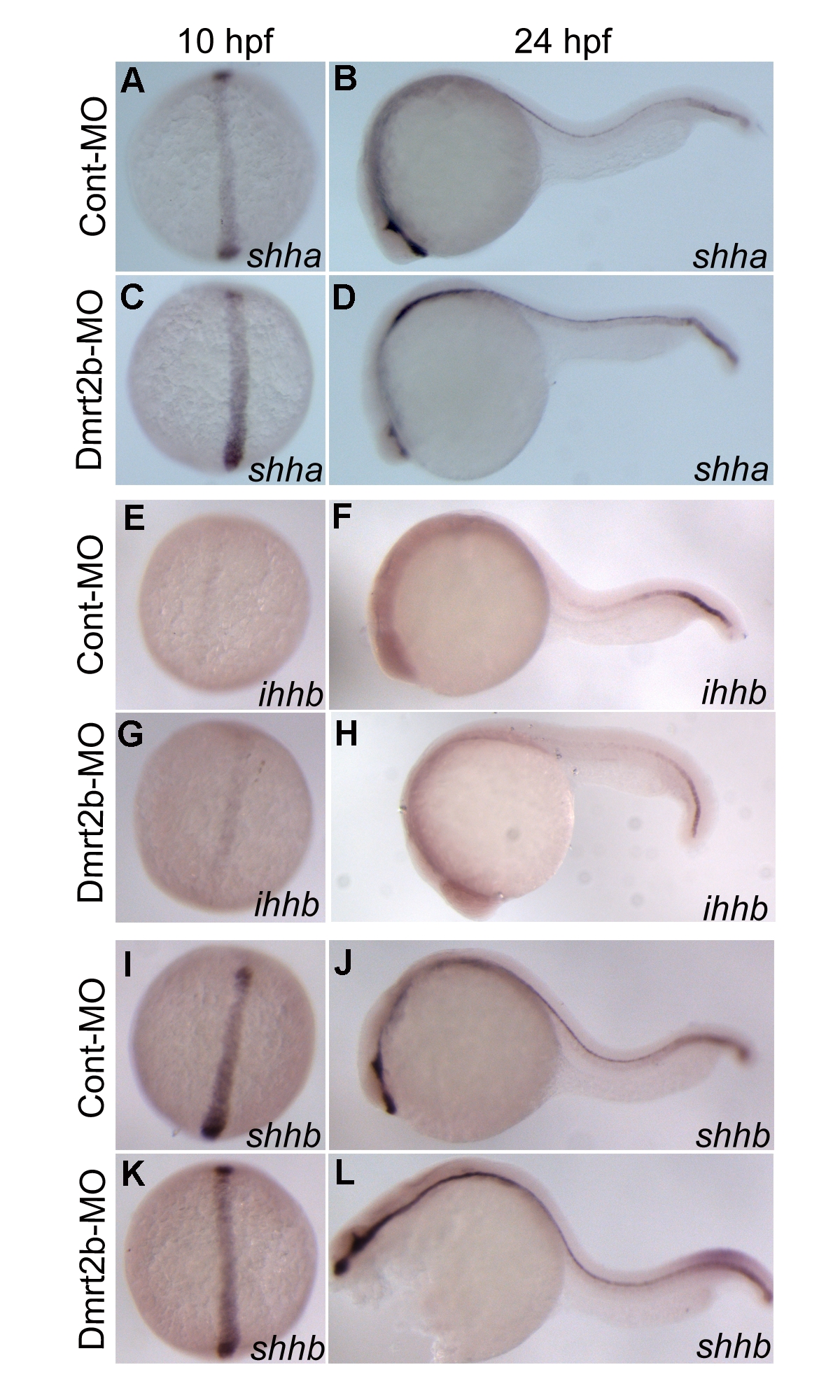

Fig. S2 Dmrt2b is not required for shha, ihhb and shhb transcription. Dorsal views of embryos at the bud stage (10 hpf) (A, C, E, G, I and K). Lateral views of embryos at 24 hpf (B, D, F, H, J and L). Expression of shha in embryos injected with Dmrt2b-MO (C and D) is similar to expression of shha in control embryos (A and B). Expression of ihhb in embryos injected with Dmrt2b-MO (G and H) is similar to expression of ihhb in control embryos (E and F). Expression of shhb in embryos injected with Dmrt2b-MO (K and L) is similar to expression of shhb in control embryos (I and J).
