ZFIN Image: Anderson et al., 2009, Fig. 5


Figure Caption

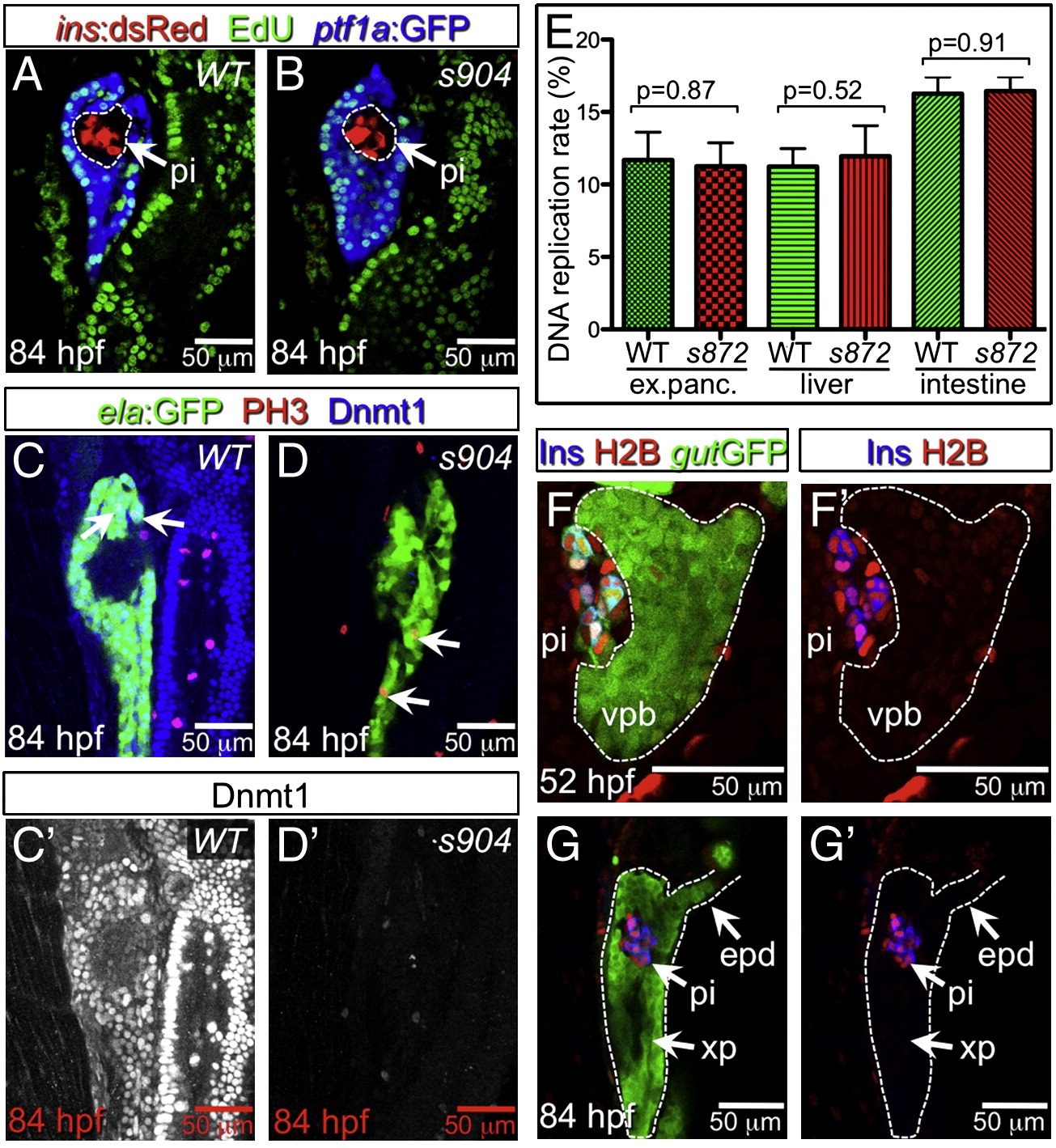

Fig. 5 Lack of Dnmt1 activity does not arrest the cell cycle. (A, B) Confocal planes showing EdU incorporation in 84 hpf WT (A) and dnmt1 mutant (B) Tg(ptf1a:EGFP)^jh1; Tg(ins:dsRed)^m1081 larvae. (C, D) Phospho-histone 3 (late G2 interphase through anaphase marker) and Dnmt1 staining of 84 hpf WT and dnmt1^s904 mutant Tg(fabp10:DsRed; ela:GFP)^gz12 larvae. (C′, D′) Dnmt1 channel only. (E) EdU incorporation rate in pancreatic acinar cells, hepatocytes, and intestine of dnmt1 mutants appears indistinguishable from WT (p = 0.87, p = 0.52, p = 0.91, respectively). Error bars = SEM. Significance assessed by Student′s t-test. (F, G) H2BRFP label retention analysis of endodermal organ forming region in WT Tg(gut:GFP)^s854 animals at 52 (F) and 84 (G) hpf. The ventral pancreatic bud (vpb) is demarcated by a dashed line. H2BRFP is diminished in the highly proliferative vpb relative to the dorsal pancreatic bud during outgrowth (F) and pancreas tail formation (G). (F′, G′) H2BRFP (red) and Ins (blue) channels only. Primary islet (pi).

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 334(1), Anderson, R.M., Bosch, J.A., Goll, M.G., Hesselson, D., Dong, P.D., Shin, D., Chi, N.C., Shin, C.H., Schlegel, A., Halpern, M., and Stainier, D.Y., Loss of Dnmt1 catalytic activity reveals multiple roles for DNA methylation during pancreas development and regeneration, 213-223, Copyright (2009) with permission from Elsevier. Full text @ Dev. Biol.
