Fig. 1

ID
ZDB-IMAGE-090831-25
Genes
Source
Figures for Berberoglu et al., 2009
Figure Caption

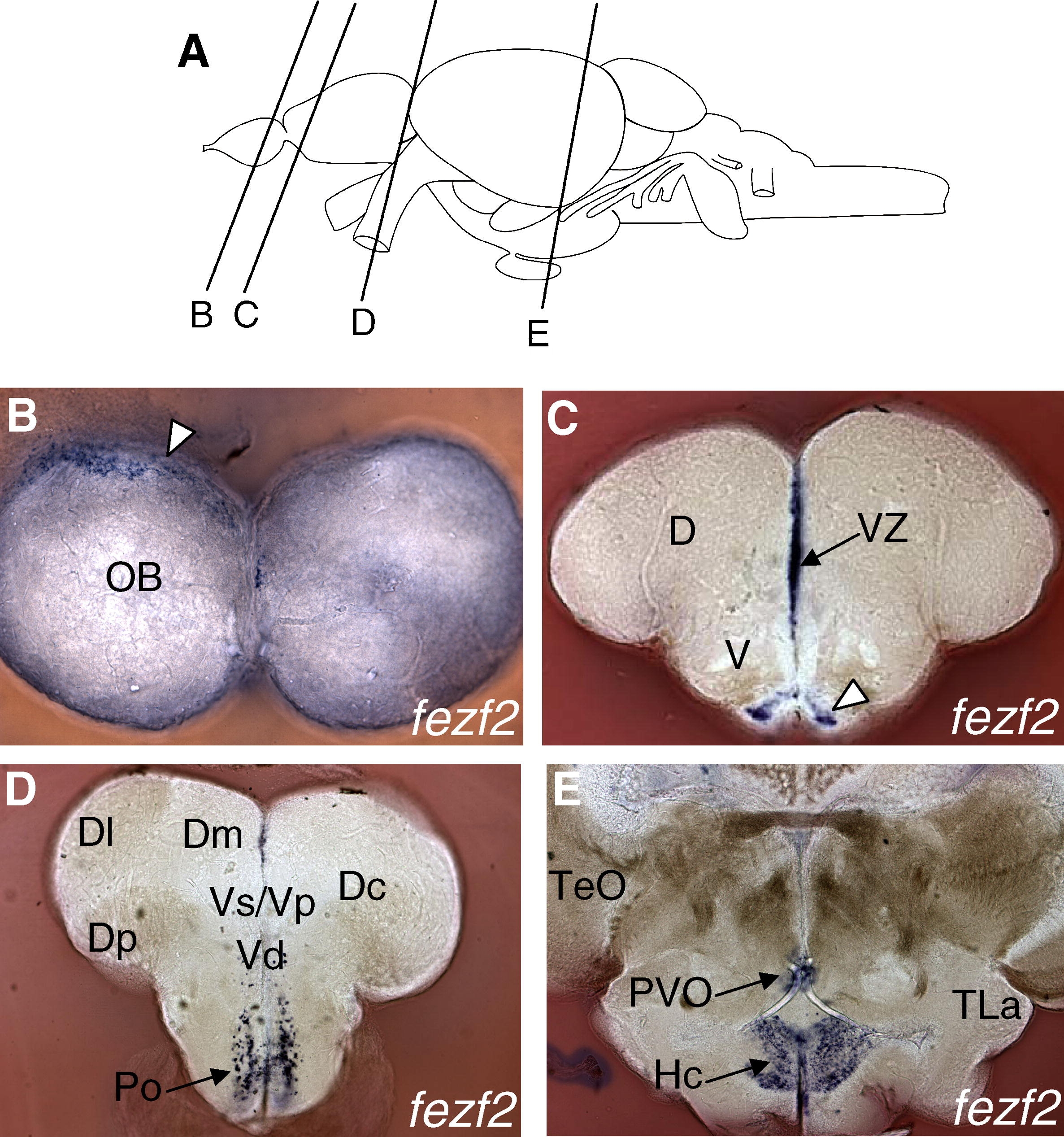

Fig. 1 fezf2 mRNA expression in the adult zebrafish brain by in situ hybridization. (A) Schematic of adult zebrafish brain showing plane of section in B–E. (B) Coronal section through caudal olfactory bulb showing fezf2 expression in the periphery (arrowhead) (10x magnification). (C) Coronal section through telencephalon showing strong fezf2 expression in the pallial ventricular zone (midline), as well as bilateral ventral expression (arrowhead) (10x magnification). (D) Coronal section showing fezf2 expression in the preoptic region (10x magnification). (E) Coronal section showing fezf2 expression in the hypothalamus (10x magnification). Schematic modified from Wullimann et al., 1996. Abbreviations: OB, olfactory bulb; D, dorsal telencephalon; V, ventral telencephalon; VZ, ventricular zone; Dl, lateral zone of D; Dm, medial zone of D; Dc, central zone of D; Dp, posterior zone of D; Vs, supracommissural nucleus of V; Vp, postcommissural nucleus of V; Vd, dorsal nucleus of V; Po, preoptic region; TeO, tectum opticum; PVO, paraventricular organ; Hc, caudal hypothalamus; TLa, torus lateralis.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 9(6), Berberoglu, M.A., Dong, Z., Mueller, T., and Guo, S., fezf2 expression delineates cells with proliferative potential and expressing markers of neural stem cells in the adult zebrafish brain, 411-422, Copyright (2009) with permission from Elsevier. Full text @ Gene Expr. Patterns
