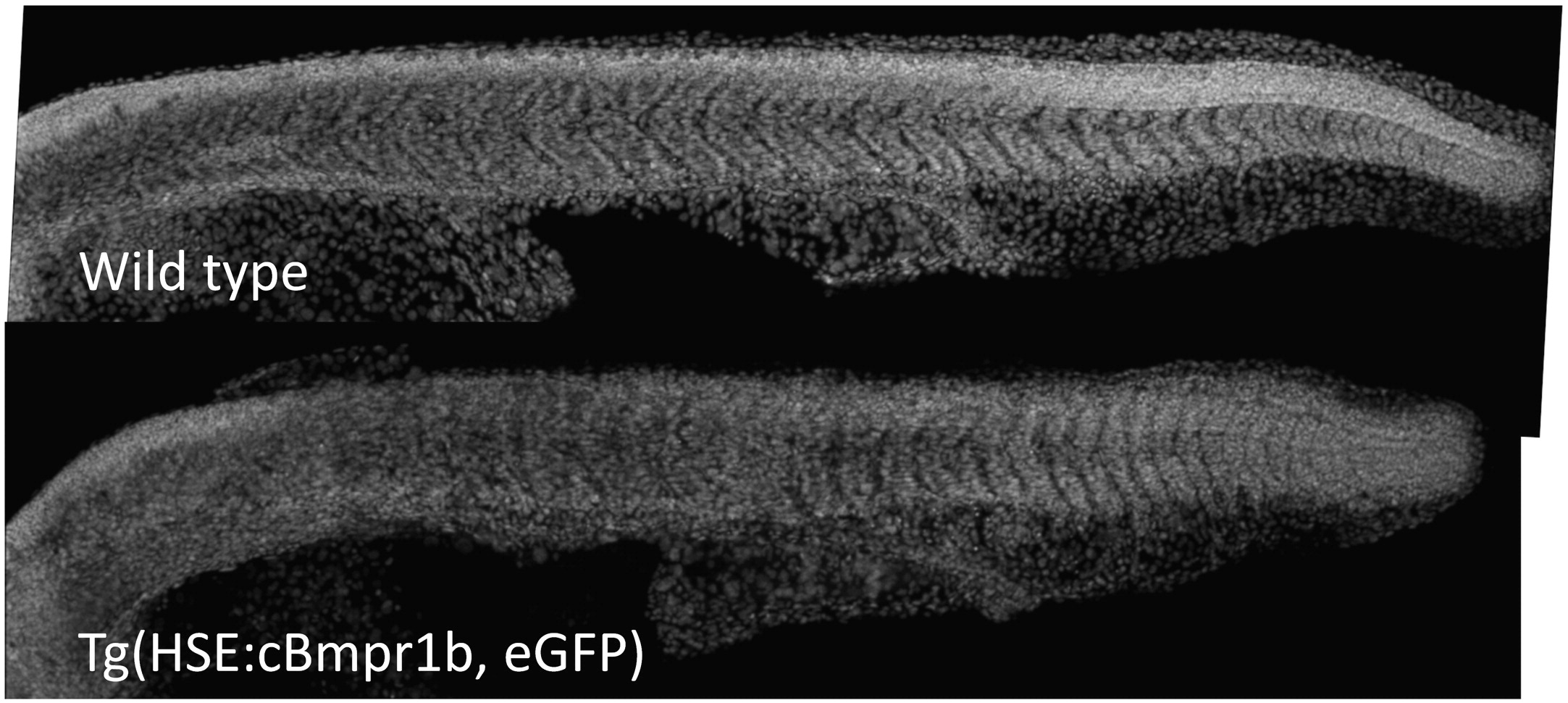

Fig. S2 Ectopic Bmp signaling disrupts somite morphogenesis. Wild-type (top) and transgenic (bottom) embryos were heat shocked at the 3-somite stage and fixed at approximately 32 h post fertilization. DAPI staining shows the nuclei aligned along clear borders in the chevron-shaped somites of the wild type embryo. Anterior somites in the transgenic embryo have indistinct or nonexistent borders. Posterior somites show partially normal segmentation but do not form the correct shape.
