Fig. 4
- ID
- ZDB-IMAGE-090501-49
- Publication
- Dixon Fox et al., 2009 - Short- and long-range functions of Goosecoid in zebrafish axis formation are independent of Chordin, Noggin 1 and Follistatin-like 1b
- All Figures
- Figures for Dixon Fox et al., 2009
|
Figure Caption

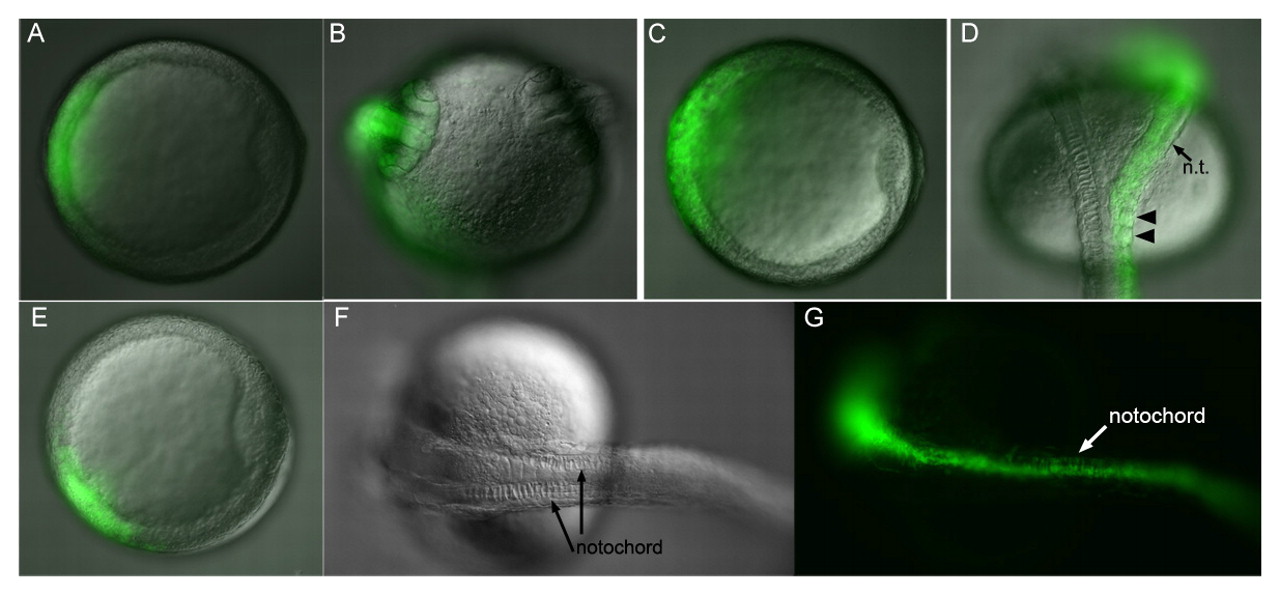

Fig. 4 gsc induces secondary axes in the absence of Chd. (A-G) Live chdtt250 embryos injected ventrally with 24 pg (A-D) or 48 pg (E-G) gsc RNA. (A,C,E) Shield, dorsal to the right. (B,D) 1 dpf, anterior to the top. (F,G) 1 dpf, anterior to the left. (B) Secondary axis with head (2/7, 29%). (D) Secondary axis without notochord (5/7, 71%). (F,G) Two notochords (arrows, 9/12, 75%). nt, neural tissue.
