Figure Caption

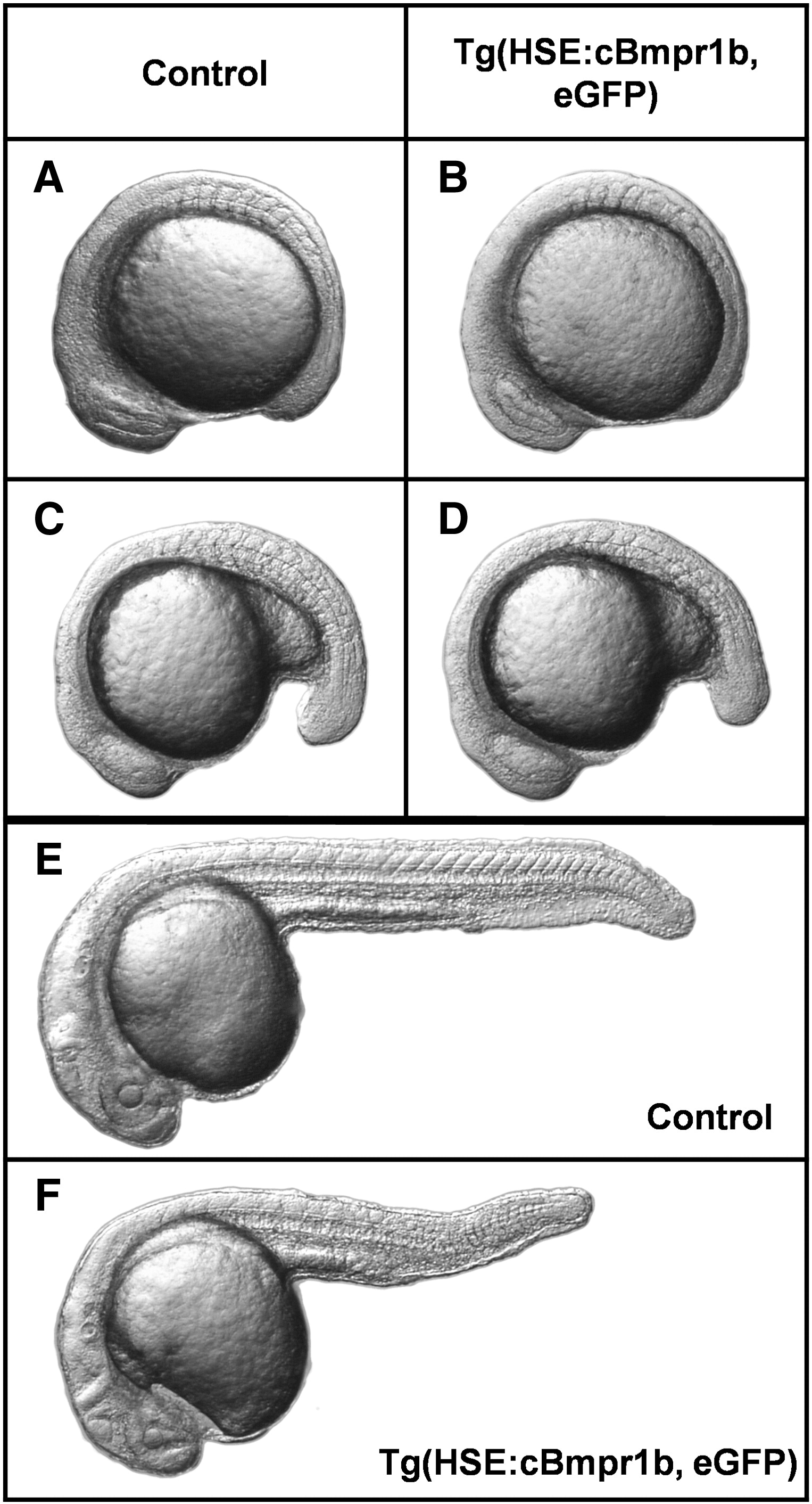

Fig. 3 Ectopic Bmp signaling during early somitogenesis alters tailbud morphogenesis. (A–D) Transgenic embryos (right) and wild-type controls were heat shocked at the 3-somite stage. No morphological change is visible at the 9-somite stage (B). By the 16-somite stage the tailbud and posterior somites display clear alterations (D). (E, F) At approximately 42 hpf transgenic embryos (F) display a shortened body axis and the epidermal fin fold has failed to form normally.
